HTA18-YB

  • Max. load: 3000 N
  • IP: IP66
  • Max. speed: 80 mm/s (@200N)
  • Stroke option: 20-900 mm
HTA18-YB

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

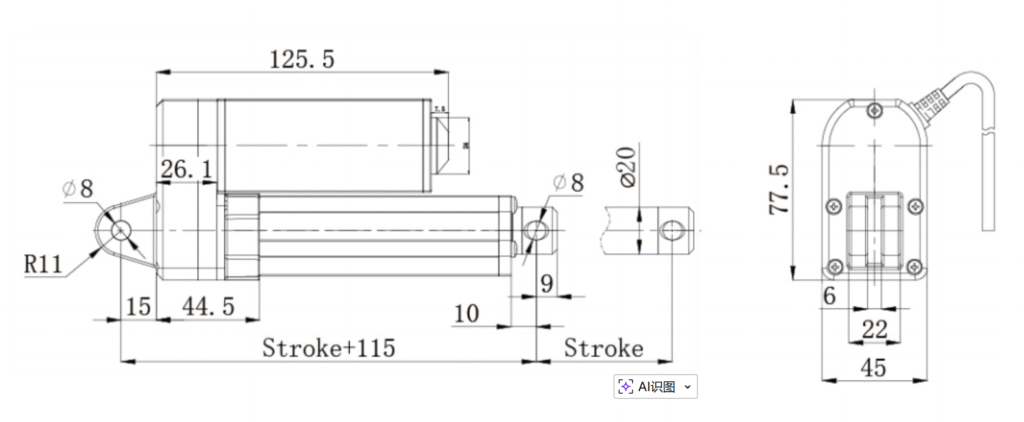

  • Built-in dimension: Stroke + 115mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 3000N
  • Protection class: IP66
  • Feedback optional: Potentiometer, Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -20°C~+60°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Duty cycle: 10%, 2min on, 18min off
  • Noise level: 55-60dB
  • Approvals:CE

HTA18-YB

code Gear ratio Screw pith
（mm）		 No-load speed
（mm/s）		 Load speed
（mm/s）		 Maximum load
（N）		 No-load current
（A）		 Load current
（A）
12V 24V 48V 12V 24V 48V
A 18.5:1 3 5 3 3000 1.2 0.6 0.3 5.5 3 1.6
B 39:1 7 5 2500 1.2 0.6 0.3 5.5 3 1.6
C 18.5:1 4 10 7 2000 1.2 0.6 0.3 5.5 3 1.6
D 39:1 18 12 1500 1.5 0.6 0.3 5.5 3 1.6
E 18.5:1 5 14 10 1200 1.5 0.6 0.3 5.5 3 1.6
F 39:1 24 17 900 1.2 0.6 0.3 5.5 3 1.6
G 18.5:1 7.5 38 28 700 1.2 0.6 0.3 5.5 3 1.6
H 39:1 45 32 500 1.5 0.6 0.3 5.5 3 1.6
I 18.5:1 12 55 40 300 1.5 0.6 0.3 5.5 3 1.6
J 39:1 80 50 200 1.5 0.6 0.3 5.5 3 1.6
