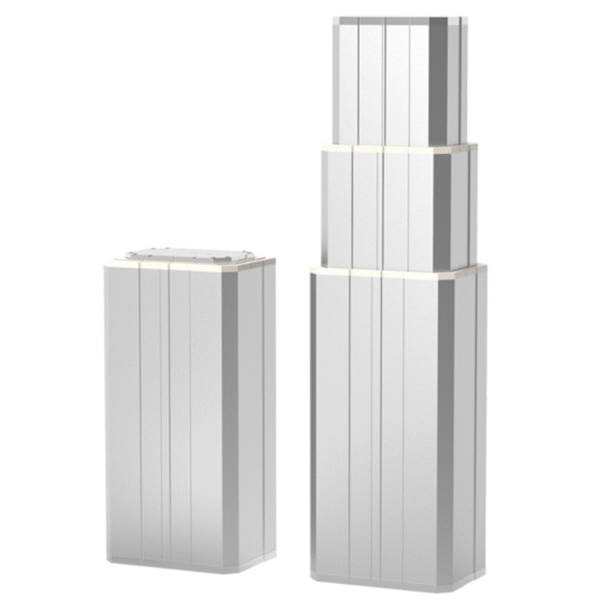

HTA3

  • Max. load: 5000N
  • IP grade: IPX4
  • Motor: DC brush motor
HTA3

Features:

  • Motor: 12V DC, 24V DC, 36V DC, 48V DC
  • Size: three sections, 193*141mm, rectangular
  • Built-in dimension: Stroke/2 + 200mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 5000N
  • Static bending moment: 1000NM
  • Dynamic bending moment:800NM
  • Protection class:IP54
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level:48-52dB
  • Approvals:CE
  • Matching with all GEMING control boxes and controls.

HTA3

HTA3 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 6,300 3750 2500 2000 1500 1000 750 500 350 250 180 150
Free-load speed(mm/s) 3.6 7.2 10.5 13 17.5 26.5 35.5 53.5 71.5 107 149 179
Full-load speed(mm/s) 2.9 5.7 8.6 10.5 14 21.5 28.5 43 57 85.5 119 143

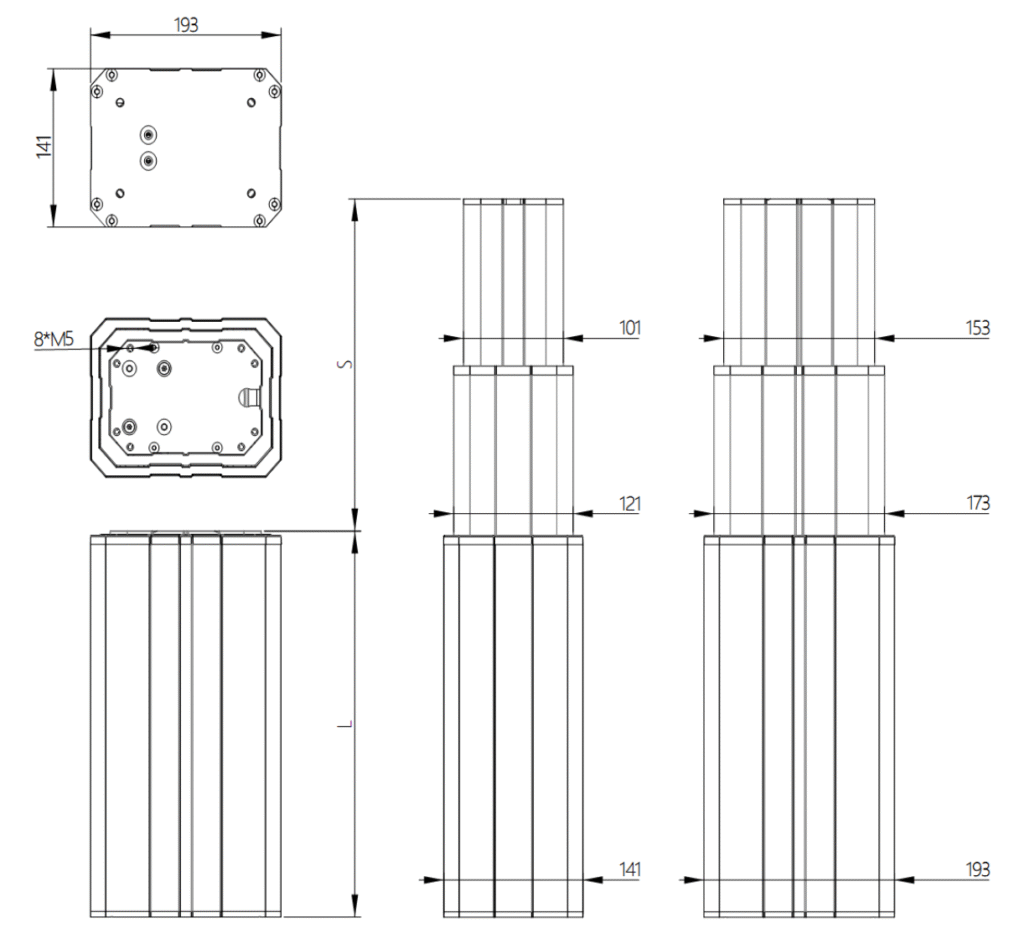

Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 200 300 400 500 600 700 800 900 1000
Retracted length(MM) 300 350 400 450 500 550 600 650 700
Net Weight(KG) 5.9 6.8 7.7 8.6 9.5 10.4 11.3 12.2 13.1
