Features:

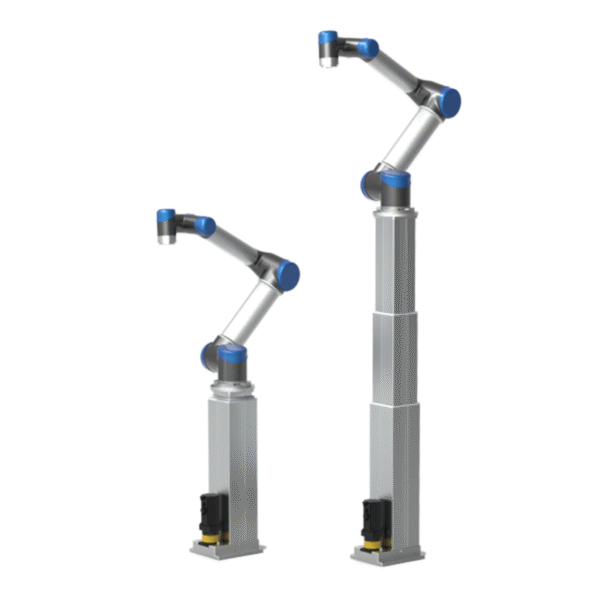

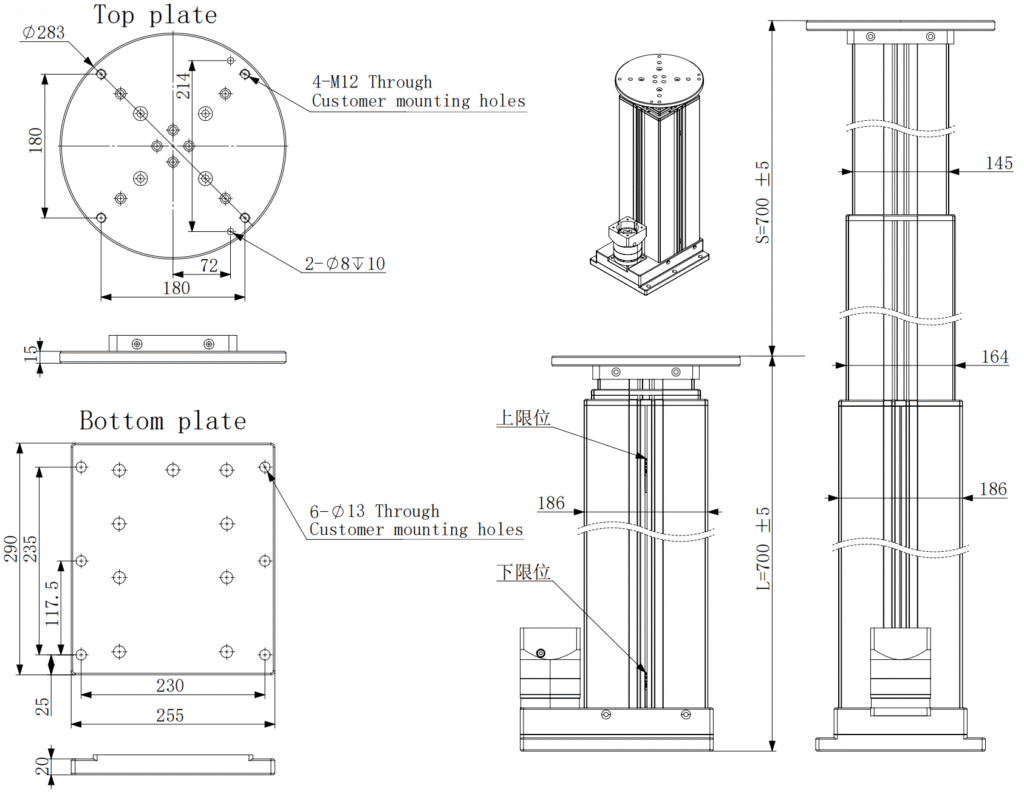

This drawing is for FANUC CRX-30iA Collaborative Robots,
You can contact us for customized drawing for other types of Robots.
| HTD3 Load V.S. Speed | Load ±10％（N） | Speed ±2（mm/S） | |||||||
| Max load(N) | 8,000 | 6,000 | 4,000 | 3,000 | 2,000 | 1,500 | 800 | 600 | 300 |
| Free-load speed(mm/s) | 4.0 | 8 | 12 | 15 | 29 | 38.5 | 57 | 76 | 159 |
| Full-load speed(mm/s) | 3.8 | 6.1 | 9.2 | 11.5 | 23 | 30.7 | 46 | 51 | 127 |
| Stroke V.S. Retracted length | stroke ±2（mm) | retracted length ±2（mm） | |||||||
| Stroke(MM) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Retracted length(MM) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| Net Weight(KG) | 5.9 | 6.8 | 7.7 | 8.6 | 9.5 | 10.4 | 11.3 | 12.2 | 13.1 |
Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.
In 2025, the same customer reordered the identical model for a new project.
