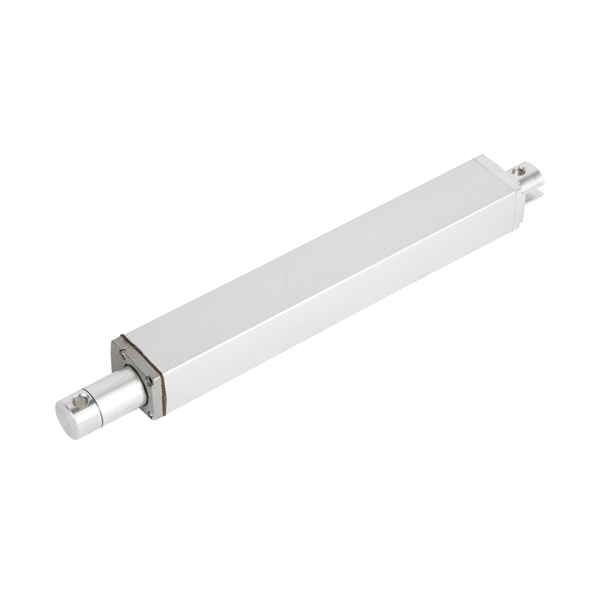

HTK37

  • Max. load: 3000 N
  • IP: IP65
  • Max. speed: 60 mm/s (@200N)
  • Stroke option: 50-600 mm
HTK37

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC

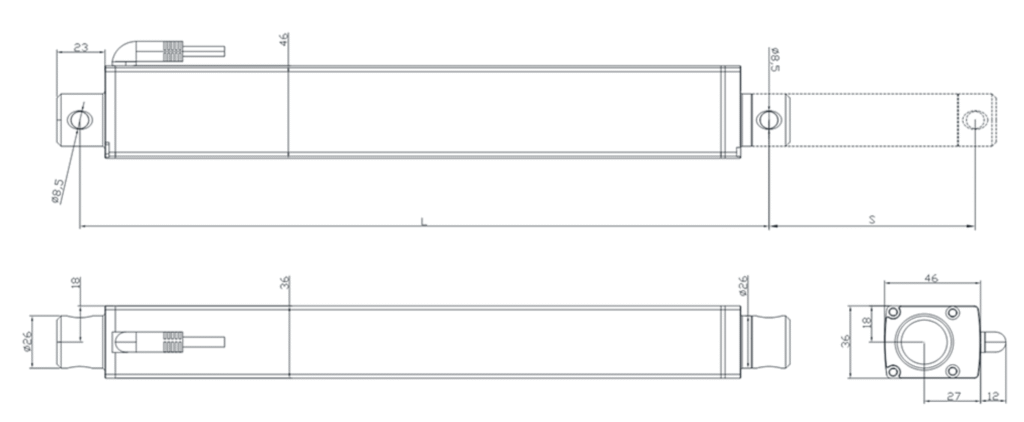

  • Built-in dimension: Stroke + 240mm(+/-3)
  • Stroke length: Max 600mm(+/-3)
  • Max load: 3000N
  • Protection class: IP65
  • Feedback optional: Hall sensor
  • Duty cycle: 2min on, 18min off(10%)
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: silver
  • Limited switch: built-in, not adjustable
  • Approvals: CE
  • Matching with all GEMING HTT series control boxes.

HTK37

HTK37 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 3,400 2350 1700 1150 900 600 300 200
Free-load speed(mm/s) 3.4 4.8 6.5 9.6 14 21 42 63
Full-load speed(mm/s) 2.7 3.8 5.4 7.7 11 17 33 50
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 330 380 430 480 530 580 630 680 750
Net Weight(KG) 1.2 1.4 1.6 1.8 2.1 2.3 2.5 2.7 3.2

View

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
