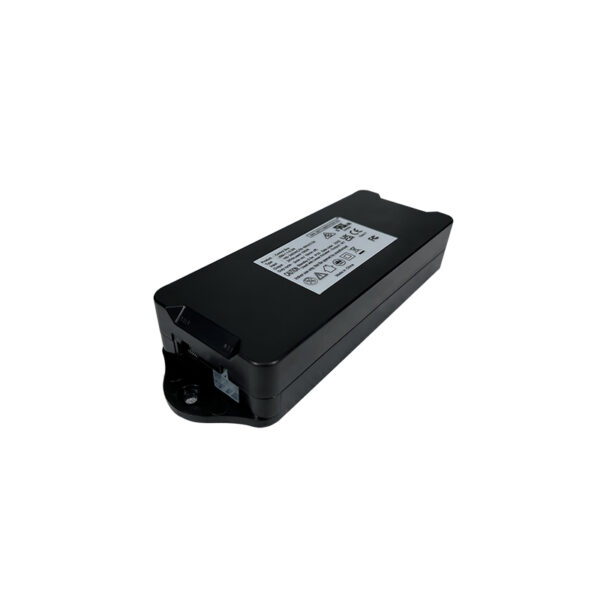

The HTT1 controller is specially designed for 1-motor synchronous lifting products. Through wired or wireless operation, it can achieve height limit adjustment, system locking, and anti-collision sensitivity. It ensures the synchronization and smooth operation of the lifting system.

Features

Drive motors: 1
Operation: synchronous
Input voltage: 110〜240V AC
Output voltage: 24〜29V DC
Color: Black
Casing material: Flame-retardant ABS
Current limiting, overload protection
Overheat protection
Short-circuit protection
Insulation function
With mounting holes

Optional power plugs for global use

Usage
Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
Ambient operating temperature: +5°C to +40°C
CE, RoHS certified

Matching with GEMING controls HTS5, WS06, WTT01
