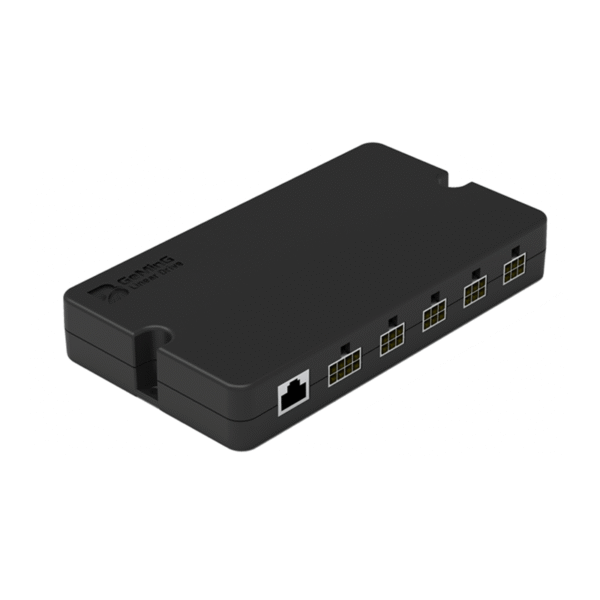

The HTT4W controller is specially designed for 4-motor synchronous lifting products. Through manual or wireless operation, it can achieve height limit adjustment, system locking, and anti-collision sensitivity. It ensures the synchronization and smooth operation of the lifting system.

Features

Drive motors: 4
Operation: synchronous
Input voltage: 12-29V DC universal
Output voltage: 12-29V DC universal
Color: Black
Casing material: Flame-retardant ABS
Current limiting, overload protection
Overheat protection
Short-circuit protection
Insulation function
With mounting holes

Usage
Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
Ambient operating temperature: +5°C to +40°C
CE, RoHS certified

Matching with GEMING controls HTS5, WS06, WTT01.
