Introduction
How to choose the right electric lifting column is not just about matching a rated load capacity on a datasheet. With decades of experience engineering linear motion solutions for strict OEM standards, we’ve seen that successful projects depend on a complex interaction of factors.
Whether you are designing a high-end medical bed, an ergonomic industrial workstation, or a heavy-duty automated platform, a column that looks strong enough on paper can easily fail in practice if the stroke, stability, or synchronization logic is miscalculated.
This guide explains how to choose a lifting column step by step for medical equipment, industrial workstations, smart furniture, and other height-adjustable systems.
1. Beyond Rated Load: Evaluating Real-World Forces
The first step is to define how much weight the column needs to lift. However, looking exclusively at the static load value listed on a datasheet is a critical mistake.
To ensure long-term reliability, you must evaluate the entire force profile:
- Total System Mass: The dead weight of the structure plus the maximum variable payload.
- Dynamic vs. Static Load: Dynamic load is the force applied during movement; static load is the holding capacity when stationary.
- Eccentric (Off-Center) Loading: If the load is not perfectly centered over the column’s vertical axis, it creates a bending moment (torque) on the internal guiding profiles.
- Multi-Column Distribution: If a system carries 200 kg and uses two columns, it does not mean each column handles exactly 100 kg. If the load shifts or is unevenly distributed, one column may carry up to 70% or more of the total force.
💡 Engineering Rule of Thumb: Never specify a column exactly at its theoretical performance limit. Always factor in a safety margin of at least 20–30% to account for unexpected dynamic spikes, uneven loading, and structural wear.

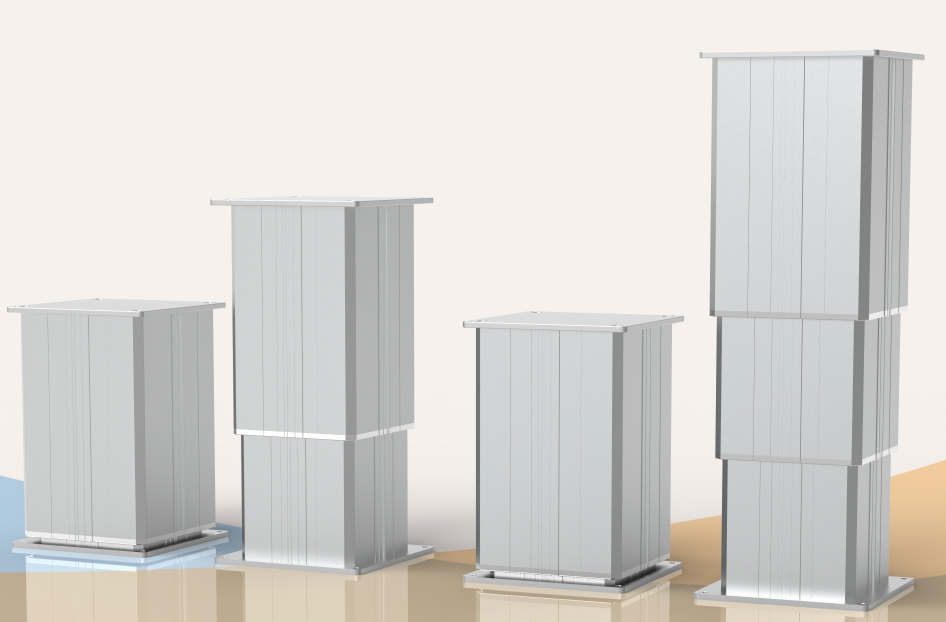

2. Define Stroke and Retracted Length: 2-Stage vs. Multi-Stage Lifting Columns
Stroke is the travel distance the column needs to move. This is one of the most important selection parameters.
Ask these questions:
- What is the absolute minimum allowable height of the system?
- What is the maximum required operational height?
- Is installation space limited when the column is fully retracted?
Deciding Between 2-Stage and Multi-Stage Telescopic Columns:
Choose a 2-Stage Lifting Column if: Your project has flexible installation space, requires a moderate stroke, and is highly cost-sensitive. A 2-stage column uses a single moving profile nested inside a static base. It offers excellent stability and cost efficiency but requires a much taller retracted height to achieve a long stroke.

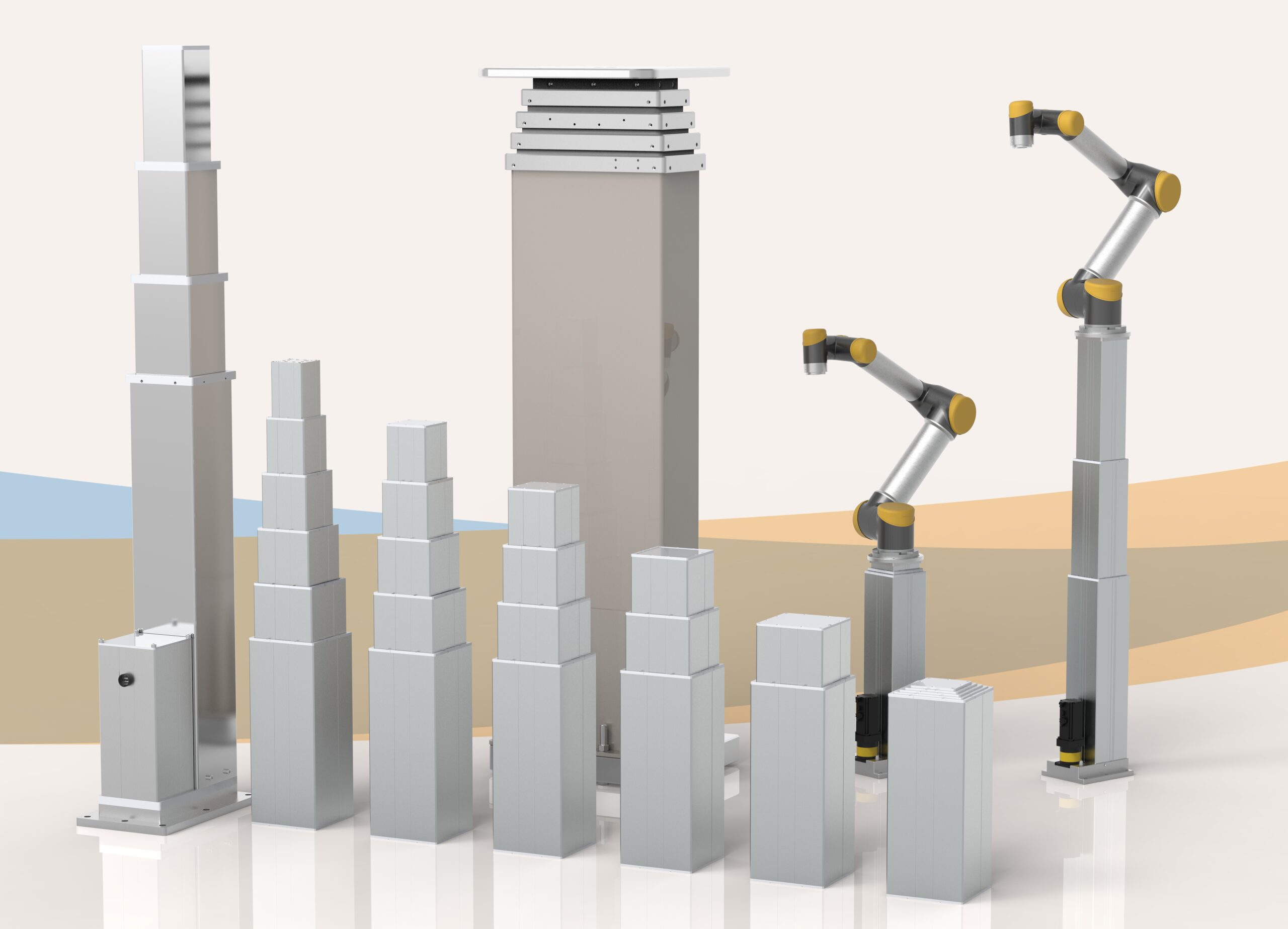

Choose a Multi-Stage Lifting Column (3-Stage and Beyond) if: Compact installation space is critical, but a massive vertical travel range is required. By nesting multiple moving profiles inside one another, multi-stage columns achieve an aggressive stroke-to-retracted-length ratio. This allows the system to drop incredibly low to the ground while still reaching extended working heights.
⚠️ Engineering & Budgetary Note for Advanced Multi-Stage Columns (>3 Stages): While a 3-stage column represents a standard sweet spot for many compact layouts, moving to 4-stage or 5-stage configurations results in a substantial cost increase. This premium is driven by hyper-strict manufacturing tolerances, additional sets of internal guide shoes, and complex internal cable management.
Furthermore, to guarantee uniform movement, manage shifting centers of gravity, and maintain constant torque across so many overlapping profiles, columns with more than 3 stages default to adapting with high-precision servo motors rather than standard DC drives. This ensures the absolute synchronization and closed-loop feedback required for ultra-low tolerance industrial and robotic applications.
3. Balance Speed, Load, and Application Needs
Speed affects both user experience and work efficiency.
For example:
- In medical or care equipment, movement should be smooth and safe.
- In office or furniture systems, moderate speed is usually acceptable.
- In industrial automation, speed may directly affect cycle time and productivity.
Speed directly impacts both user experience and overall system cycle time, but it cannot be evaluated in isolation. In linear motion engineering, speed and load capacity are inversely proportional given a fixed motor size; higher speeds typically mean lower lifting capacities.
4. Evaluate Structural Stability and Eccentric Loads/Bending Moments
Lifting columns are chosen over standard linear actuators primarily because their nested aluminum or steel profiles provide integrated guidance and structural stability. They act as a load-bearing column and an actuator all in one.
However, as a column extends, its susceptibility to bending moments increases. You must calculate:
- Installation base width
- Center of gravity of the moving structure
- Extended height
- Side load and bending moment
- Whether the system uses one column or multiple columns
🏗️ Real-World Engineering Insight: > In our recent specialized high-altitude technical evaluations, we successfully deployed and tested lifting column systems in extreme 10-meter high testing scenarios. At these heights—or even on a standard mobile medical cart—poor structural tolerances will cause the telescoping profiles to bind or fail long before the motor ever reaches its maximum electrical capacity. Always design around your system’s dynamic center of gravity.
5. Single vs. Multi-Column Systems: The Synchronization Factor
When a project requires two or more columns to lift a single, rigid platform, the control system ceases to be an afterthought—it becomes the heart of the solution.
Multi-column integration introduces complex engineering challenges:
- Synchronization Accuracy: If one column moves even slightly faster than the other, the platform will tilt, causing structural binding, mechanical stress, or safety hazards.
- Feedback Logic: The system must utilize advanced control boxes paired with Hall sensors, CAN bus communication, or other signal outputs to monitor individual column positioning in real-time.
6. Match Environmental Constraints to Material Specifications
A pristine, climate-controlled indoor environment demands a completely different structural design than a harsh industrial factory floor or an outdoor engineering site.
Ensure your column’s specifications align with these environmental variables:
- Ingress Protection (IP Rating): Do you need protection against fine dust, splashing water, or high-pressure washdowns (e.g., IP54 or IP67)?
- Duty Cycle: Is the system operating continuously, or does it follow a standard intermittent duty cycle (e.g., 10%, meaning 2 minutes of continuous operation followed by 18 minutes of rest)?
- Acoustic Limits: Does the application require ultra-low noise levels (under 50 dB) for clinical settings?
☢️ Case Study Focus: For our specialized nuclear power plant engineering projects—which began rigorous testing in 2020 and have achieved stable, multi-year operation—the columns require custom heavy-duty sealing, specialized coatings, and robust internal gearing engineered to withstand rigorous continuous performance with zero tolerance for failure.
7. 2-stage vs 3-stage lifting column: quick comparison
| Engineering Factor | 2-Stage Lifting Column | 3-Stage Lifting Column | Multi-Stage Lifting Column (4+ Stages) |
| Profile Structure | 2 nested sections (1 extension stage) | 3 nested sections (2 extension stages) | 4 to 5+ nested sections (3+ extension stages) |
| Retracted Space | Requires maximum vertical clearance when closed. | Compact; excellent balance of closed height to travel. | Ultra-compact; fits into minimal vertical clearance envelopes. |
| Stroke Capability | Moderate travel range. | Long travel range relative to closed height. | Maximum travel range with highly aggressive telescoping ratio. |
| Relative Cost | Baseline / Most cost-effective. | Moderate / Standard premium. | Exponentially higher / Premium due to hyper-strict tolerance engineering. |
| Default Motor Drive | Standard DC / Brushed motors. | Optional Brush, Brushless or Servo motor. | High-precision Servo Motors (closed-loop control for uniform torque). |
| Typical Use Cases | Standard industrial workstations, assembly lines, basic height-adjustable furniture. | Mobile medical carts, ergonomic touch tables, collaborative robot (cobot) pedestals. | Ultra-low profile automated guided vehicles (AGVs/AMRs), specialized heavy aerospace rigs, advanced custom robotics. |
8. Common Engineering Mistakes to Avoid
Choosing only by maximum load
Rated load is important, but it is not enough. Real applications also involve side force, instability, and movement conditions.
Ignoring closed length
A column may provide enough stroke but still not fit the actual structure.
Overlooking control and synchronization
In multi-column systems, the controller and control logic are part of the solution.
Not considering end-use conditions
Noise, duty cycle, moisture, and installation layout all affect long-term performance.
9. RFQ Checklist: What to Prepare for a Rapid Technical Quotation
To help our engineering team recommend the most precise, cost-effective, and long-lasting linear motion solution for your project, please have the following parameters ready:
- [ ] Application Type: (e.g., AGV/AMR platform, cobot lift, medical bed, industrial desk)
- [ ] Dynamic & Static Load Requirements: (in kg or Newtons)
- [ ] Target Bending Moment / Side Load: (if applicable)
- [ ] Required Stroke Distance: (in mm)
- [ ] Maximum Allowable Retracted Length: (in mm)
- [ ] Number of Columns per System: (Single, 2-way split, 4-way sync, etc.)
- [ ] Target Operating Speed: (mm/s at full load)
- [ ] Input Voltage & Control Preferences: (e.g., 24VDC, 110V/220VAC, Hall sensor feedback, CAN bus)
- [ ] Environmental Constraints: (IP rating requirements, noise limits, duty cycle)
The clearer the input parameters, the faster and more accurately the solution can be recommended.
Conclusion of How to Choose Electric Lifting Column
Choosing the right lifting column is a system decision, not a single-parameter decision. Load, stroke, speed, stability, installation space, and control requirements must all be considered together.
If you are working on a new project or replacing an existing lifting system, preparing the right technical information at the beginning can save a lot of time during selection and testing.
Partner With Linear Motion Experts
Need a custom engineering evaluation for a complex project? Our technical team specializes in developing high-performance, synchronized, and environmentally tailored lifting systems.
[Contact Our Technical Sales Team] with your layout drawings, load dynamics, and application environment for a detailed, data-driven recommendation.
Technical FAQ: Selecting Electric Lifting Columns for OEM & Industrial Applications
Static load only measures pure axial (vertical) weight distribution. In real-world applications—such as cantilevered workstations or single-sided medical equipment—the payload is rarely centered, which generates a significant bending moment (Bending Moment = Force × Distance).
Design Recommendation: When requesting a quote, always specify the exact eccentric distance and any dynamic lateral forces. If your system faces severe off-center loads, we recommend expanding the column profile cross-section, increasing the internal guide-shoe overlap length, or upgrading to a structurally rigid multi-stage configuration.
A: This is a matter of mechanical tolerance and control loop balance. When a column utilizes four or five nesting sections, the internal mechanical interfaces multiply. This causes internal friction variances and cumulative mechanical backlash to stack up exponentially.
If a standard brushed DC motor is used without precise closed-loop feedback, the column is highly susceptible to the “stick-slip” effect, resulting in abrupt lurching or uneven section extension.
The Necessity of Servo Integration: Servo drives provide closed-loop position feedback and constant torque management. The servo controller constantly monitors minute resistance variations as the multiple profiles telescope out, instantly modulating power output. This guarantees a highly uniform, ultra-smooth stroke velocity and eliminates the risk of internal mechanical jamming.
A:
The synchronization accuracy of a multi-column platform depends entirely on the feedback architecture:
Standard-Duty Systems: We utilize built-in Hall sensors for precise pulse-count tracking. The central control box runs real-time correction algorithms to adjust the voltage output to each individual column, keeping deviation tolerances within +-1~2mm.
Heavy-Duty / High-Precision Systems (4+ Stages): We implement CAN-bus or industrial bus-driven servo control to achieve microsecond-level closed-loop synchronization.
Fail-Safe & Safety Mechanisms: Our control architecture features continuous deviation monitoring paired with intelligent overcurrent protection (Anti-Collision detection). If a column strikes an obstruction or suffers a mechanical jam that pushes the pulse deviation past a strict threshold, the controller cuts power to all synchronized units within 100 milliseconds and executes a brief safety reversal. This completely prevents platform tilting, structural twisting, or system tip-overs.
A: Standard electric lifting columns are engineered for intermittent duty cycles (typically a 10% duty cycle, or an S2 short-time duty rating). This means a column operating at full load for 2 continuous minutes must rest for 18 minutes to prevent thermal buildup in the motor and internal gear sets.
High-Frequency Demands: If your application involves automated assembly lines, material handling, or AGV/AMR platforms that require high-frequency operation (e.g., a 30% to 50%+ duty cycle), standard brushed DC motors will fail prematurely due to brush wear and thermal saturation.
The Solution: For continuous-run environments, we substitute brushed motors with Brushless DC (BLDC) or brushless servo motors. Concurrently, we replace traditional, high-friction ACME/trapezoidal lead screws with high-efficiency ball screws, minimizing internal friction, reducing heat dissipation, and maximizing operational uptime.
A: Ensuring absolute fail-safe operation is paramount for OEM system integrity. Back-driving prevention is governed by the column’s self-locking capability:
ACME / Trapezoidal Lead Screws: These screws feature high inherent mechanical friction, providing excellent natural self-locking performance. In a power-loss event, the column will remain firmly locked in its current position under full rated load.
Ball Screws: Ball screws feature exceptional mechanical efficiency (greater than 90%) but have virtually zero self-locking capability. For high-load ball screw columns, we integrate an electromagnetic power-off brake (holding brake) directly onto the rear of the motor shaft. The moment power is cut, heavy-duty internal springs engage the brake pad, locking the motor shaft instantly and delivering a static holding capacity that matches or exceeds the column’s maximum dynamic rating.
