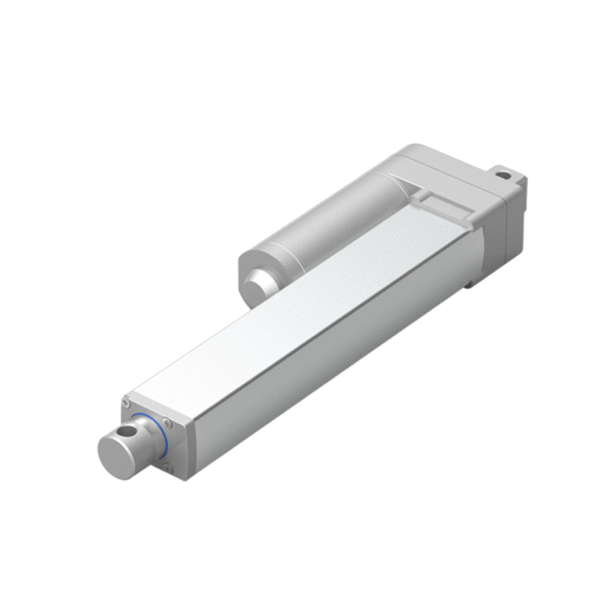

HTA21

  • Max. load: 4500 N
  • IP: IP66
  • Max. speed: 40 mm/s (@700N)
  • Stroke option: 20-800 mm
HTA21

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

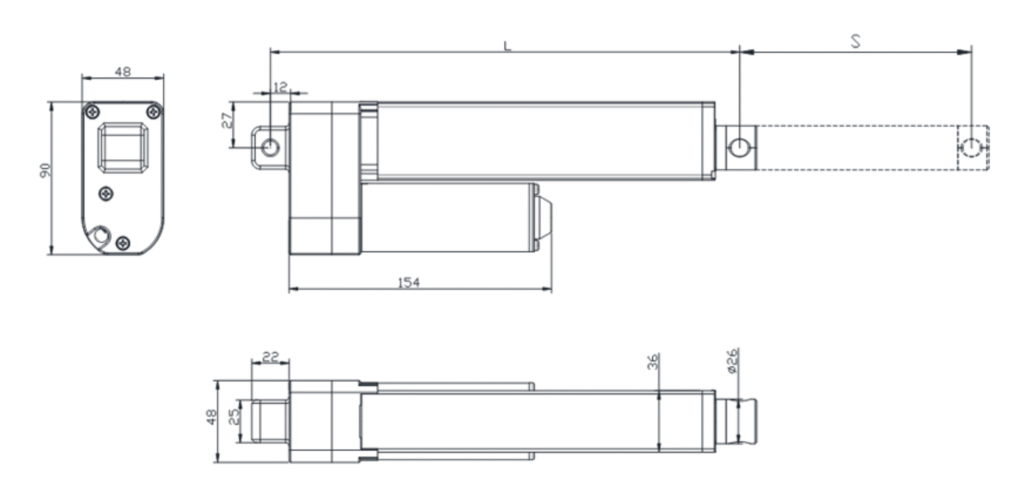

  • Built-in dimension: Stroke + 125mm(+/-3)
  • Stroke length: Max 800mm(+/-3)
  • Max load: 4500N
  • Protection class: IP66
  • Feedback optional: Potentiometer, Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Matching with all GEMING control boxes and controls.

HTA21

HTA21 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 4,500 2,200 1,500 1,100 750
Free-load speed(mm/s) 7.2 14 21 28 43
Full-load speed(mm/s) 5.8 11 17 23 34
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 50 100 150 200 250 300 350 400 450
Retracted length(MM) 175 225 275 325 375 425 475 525 575
Net Weight(KG) 1.2 1.4 1.6/12.5 1.8 2.1 2.3 2.5 2.7 3.2

View

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
