HTA28 W/HALL Sensor

  • Max. load: 4500 N
  • IP: IP66
  • Max. speed: 40 mm/s (@600N)
  • Stroke option: 10-600 mm
HTA28 W/HALL Sensor

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

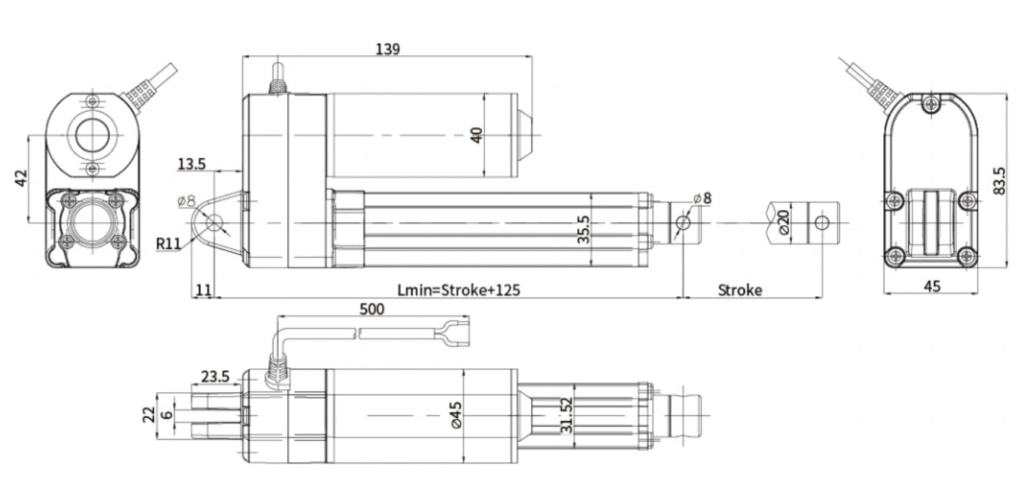

  • Built-in dimension: Stroke + 125mm(+/-3)
  • Stroke length: Max 600mm(+/-3)
  • Max load: 4500N
  • Protection class: IP66
  • Feedback: built-in Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Matching with all GEMING control boxes and controls.

HTA28 W/HALL Sensor

HTA28H Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 5,800 4,300 2900 2,400 1600 3800 1900 1250 950 600
Free-load speed(mm/s) 3 5.9 8.8 11.5 17.5 6.6 13 19 26 39
Full-load speed(mm/s) 2.3 4.7 7 9 14 5 10 15 21 31
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 225 275 325 375 340 490 540 590 640
Net Weight(KG) 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2

View

  • PDF

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
