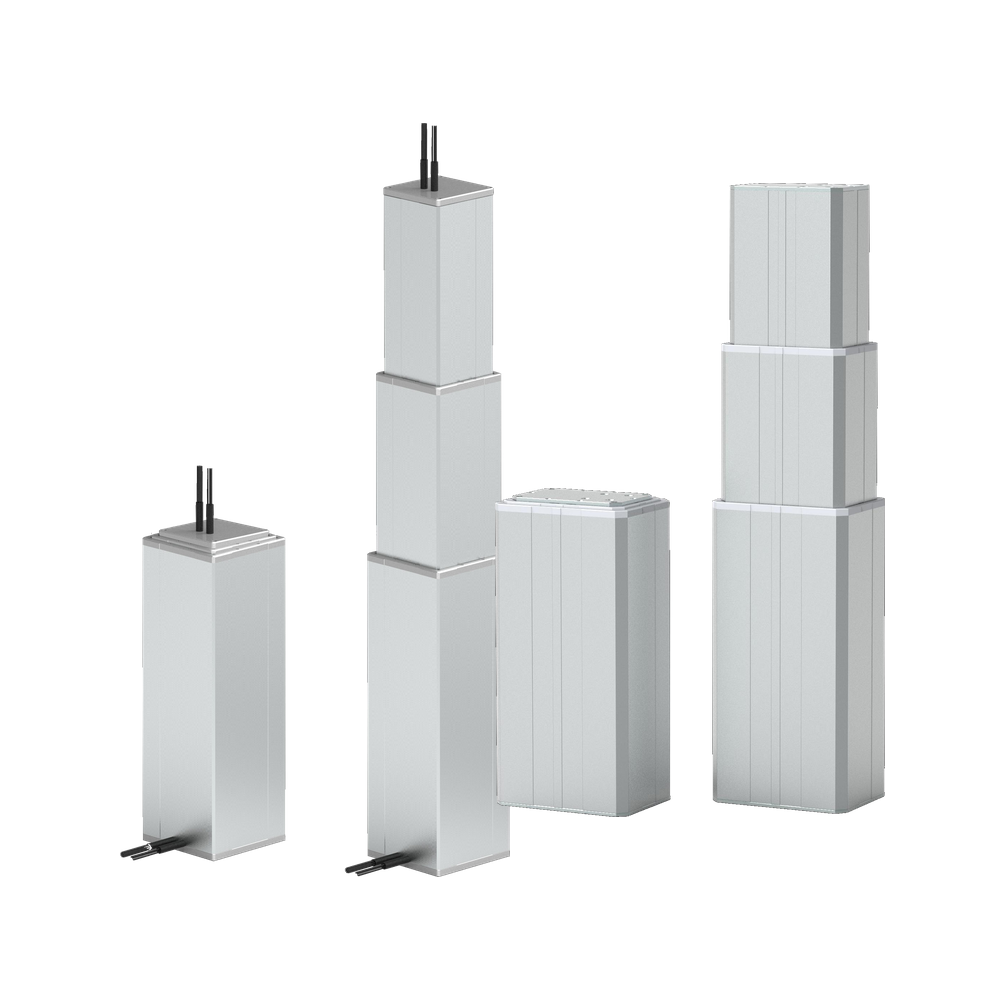

The HTA3 / HTD3 Robot Lifting Column series is designed for embodied intelligence robots, mobile robots, service robots, AGV/AMR intelligent equipment, and human-machine collaborative robotic systems. The series integrates precise vertical lifting, stable load support, and intelligent height adjustment for robot walking, obstacle avoidance, workstation docking, and automated operation scenarios.
Both models use high-strength formed aluminum alloy profiles with an internal quiet servo lifting system. They support smooth start and stop, low-noise operation, accurate stroke control, and communication with robot control systems for automatic height matching, fixed-point lifting, and linked start/stop.
| Model | HTD3 | HTA3 |
|---|---|---|
| Profile size | 142 x 142 mm square lifting column | 193 x 141 mm rectangular lifting column |
| Voltage | 48V DC | 48V DC |
| Motor option | DC servo motor | DC servo motor |
| Maximum thrust / pull force | 1500N / 1500N | 1500N / 1500N |
| Speed under load | 0-150 mm/s at 800N load | 0-150 mm/s at 800N load |
| Minimum initial height | Stroke / 2 + 200 mm | Stroke / 2 + 200 mm |
| Dynamic lateral torque | 1000 Nm | 1800 Nm |
| Static lateral torque | 1800 Nm | 2000 Nm |
| Noise | 48-70 dB | 48-70 dB |
| Operating temperature | -35 C to +75 C | -35 C to +75 C |
| Protection rating | IP54 | IP54 |
| Screw option | Ball screw, lead 20 | Ball screw, lead 20 |
| Reduction ratio | 10:1 | 10:1 |
| Limit options | Soft limit, mechanical limit | Soft limit, mechanical limit |
| Communication options | CANopen / EtherCAT / RS485 | CANopen / EtherCAT / RS485 |
| Wiring | Internal wiring, custom cable available | Internal wiring, custom cable available |
| Color | Silver gray or black, customizable | Silver gray or black, customizable |
| Stroke S (mm) | 300 | 400 | 500 | 600 | 700 | 800 |
|---|---|---|---|---|---|---|
| Installation dimension L (mm) | 350 | 400 | 450 | 550 | 600 | 700 |
| Expanded height S + L (mm) | 650 | 800 | 950 | 1150 | 1300 | 1500 |
Download HTA3 / HTD3 Robot Lifting Column PDF datasheet
For robot lifting applications, final selection should consider payload, eccentric load, stroke, installation height, robot interface, communication protocol, wiring method, duty cycle, and operating environment.
