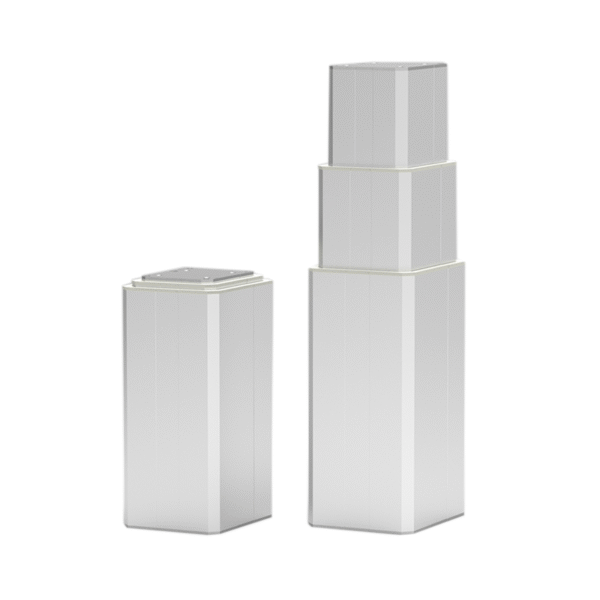

HTD3 Telescopic

  • Max. load: 8000N
  • IP grade: IPX4
  • Motor: DC brush motor, DC brushless motor, Servo motor
HTD3 Telescopic

Features:

  • Motor: 12V DC, 24V DC, 36V DC, 48V DC, 220VAC
  • Maximum outer tube size: three sections, 163*163mm(HTD3-16),182*182mm(HTD3-18), square
  • Built-in dimension: Stroke/2 + 200mm(+/-3)
  • Stroke length: 300~ 2000mm(+/-3)
  • Max load: 8000N
  • Static bending moment: 1000NM
  • Dynamic bending moment:800NM
  • Protection class:IP54
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level:55-65dB
  • Approvals:CE
  • Matching with all GEMING control boxes and controls.

HTD3 Telescopic

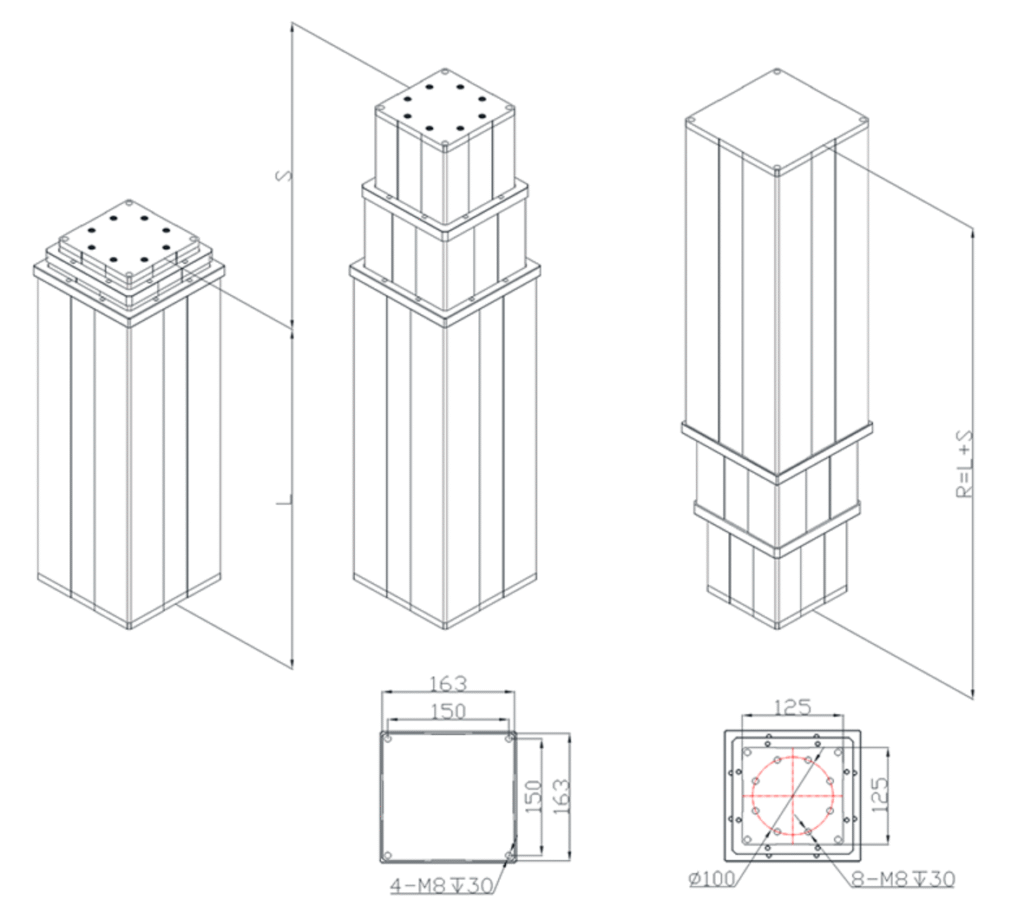

HTD3-16

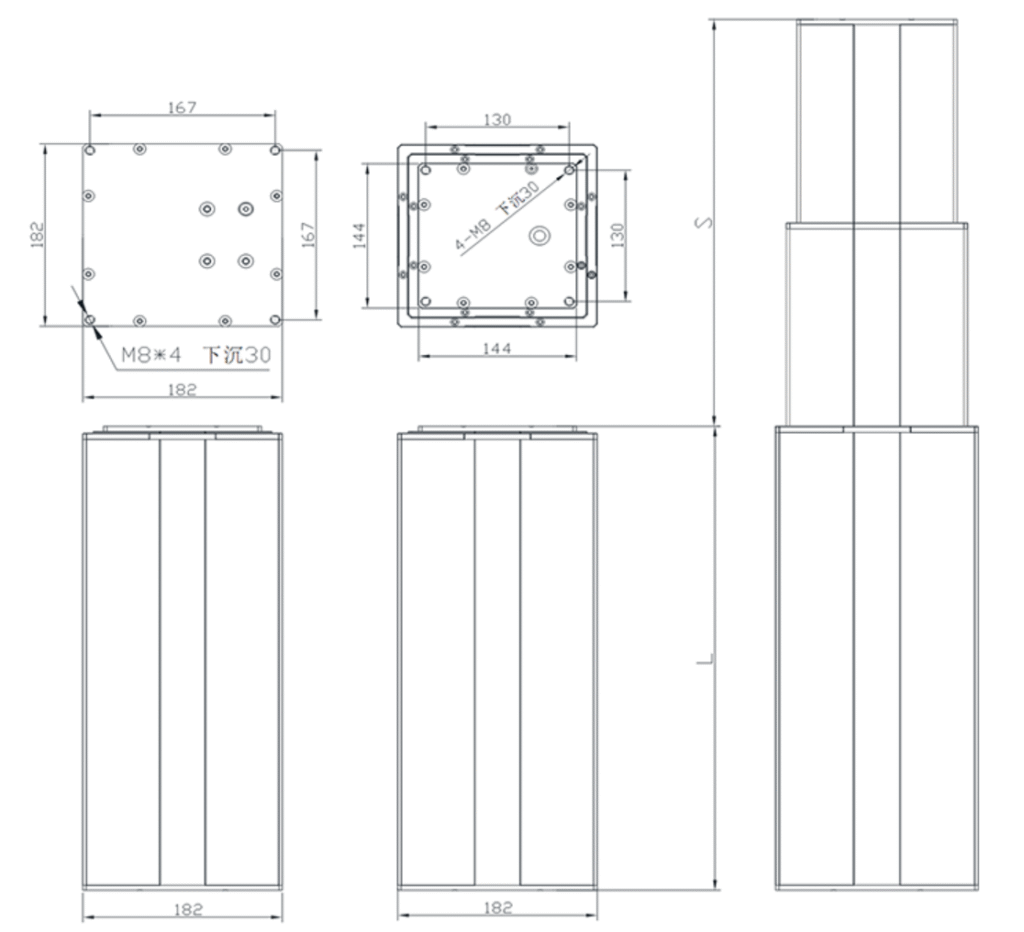

HTD3-18



HTD3 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 8,000 6,000 4,000 3,000 2,000 1,500 800 600 300
Free-load speed(mm/s) 4.0 8 12 15 29 38.5 57 76 159
Full-load speed(mm/s) 3.8 6.1 9.2 11.5 23 30.7 46 51 127
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 200 300 400 500 600 700 800 900 1000
Retracted length(MM) 300 350 400 450 500 550 600 650 700
Net Weight(KG) 5.9 6.8 7.7 8.6 9.5 10.4 11.3 12.2 13.1

View

  • PDF

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
