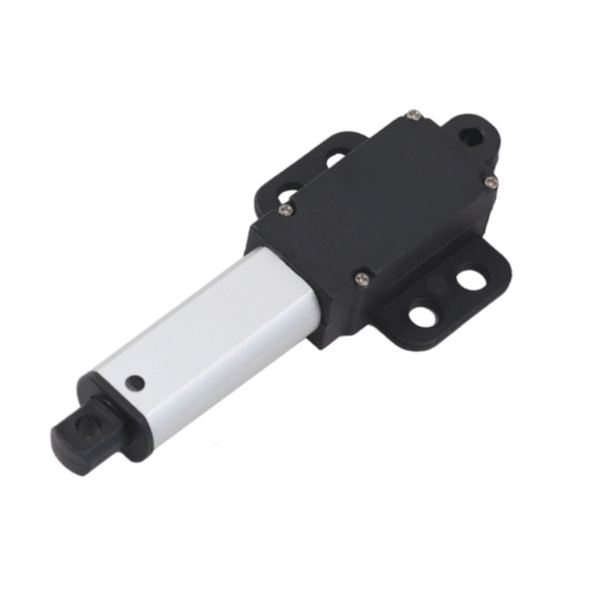

HTK15W Mini

  • Max. load: 180 N
  • IP: IP65
  • Max. speed: 150 mm/s (@6N)
  • Stroke option: 10-150 mm
HTK15W Mini

Features:

  • Motor: DC brush motor
  • Voltage: 6VDC, 12V DC, 24V DC
  • Built-in dimension: Stroke + 54.5mm(+/-2)
  • Stroke length: 10 / 17.5 / 21 / 25 / 30 / 50 / 75 / 100/ 150mm
  • Max load: 180N
  • Protection class: IP65
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -25°C~+60°C
  • Duty cycle: 2min on, 18min off(10%)
  • Max service life: 50000times
  • Noise: 55dB
  • Certification: CE ROHS
  • Material: anodised aluminium tube and plastic shell with mounting support
  • Built-in electrical limited switch, not adjustable

HTK15W Mini

HTK15 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 60 30 20
Free-load speed(mm/s) 3.0 7.0 12
Full-load speed(mm/s) 2.5 5.4 10
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 30 50 70 100 150 200
Retracted length(MM) 128 148 168 198 248 298
Net Weight(KG) 0.2 0.3 0.4 0.5 0.6 0.7

View

  • PDF

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
