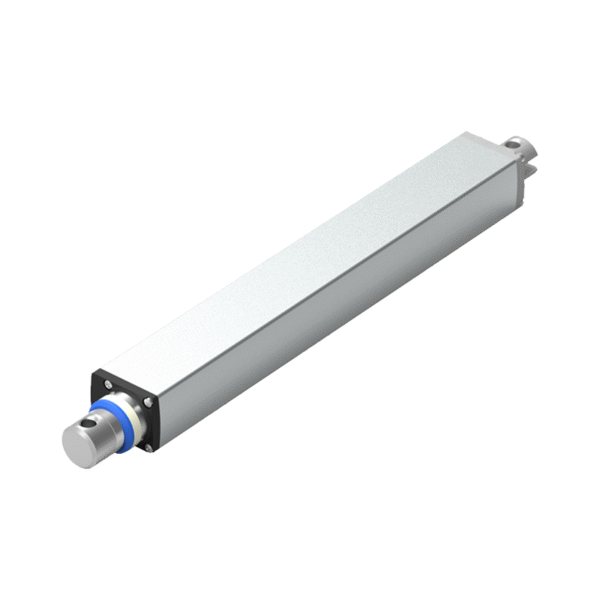

HTK38 Telescopic

  • Max. load: 1500 N
  • IP: IP65
  • Max. speed: 100 mm/s (@100N)
  • Stroke option: 200-1200 mm
HTK38 Telescopic

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC
  • Built-in dimension: Stroke + 280mm(+/-3)
  • Stroke length: Max 1200mm(+/-3)
  • Max load: 1500N
  • Protection class: IP65
  • Feedback optional: Hall sensor
  • Duty cycle: 2min on, 18min off(10%)
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: silver
  • Limited switch: built-in, not adjustable
  • Approvals: CE
  • Matching with all GEMING HTT series control boxes.

HTK38 Telescopic

HTK38 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 1,500 950 400 200 100
Free-load speed(mm/s) 6 12 26 53 100
Full-load speed(mm/s) 4.8 9.5 21 42 84

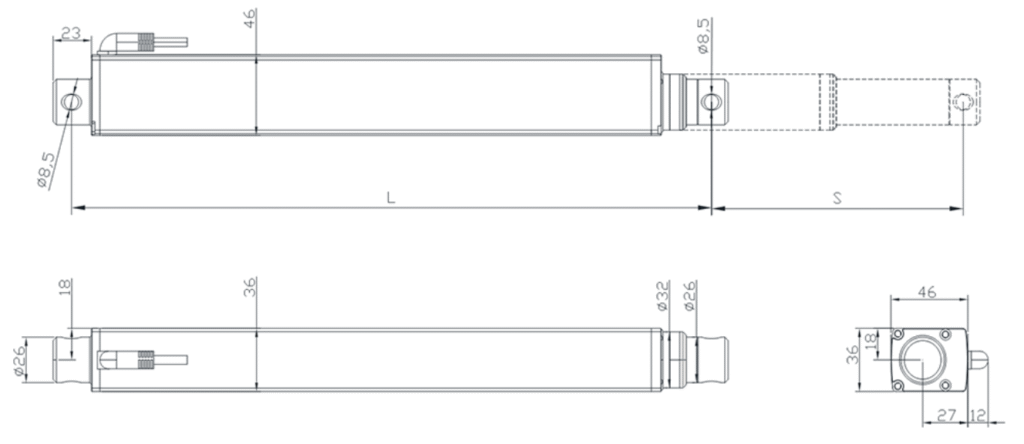

Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 200 300 400 500 600 700 800 900
Retracted length(MM) 330 380 430 480 530 580 630 680 750
Net Weight(KG) 1.5 1.8 2.1 2.4 2.7 3 3.3 3.6 3.9

View

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
