HTK78

  • Max. load: 10000 N
  • IP: IP65
  • Max. speed: 95.2 mm/s
  • Stroke option:  500mm, 3000mm
HTK78

Features:

  • Voltage: 24V DC,48V DC
  • Motor type: DC brushless motor, permanent magnet DC motor
  • Stroke length: 500~3000MM
  • Maximum speed under full load: 120.0 mm / s (load 500 N)
  • Slowest speed under full load: 7.0 mm / s (load 6,000 N)
  • Max load: 10000N

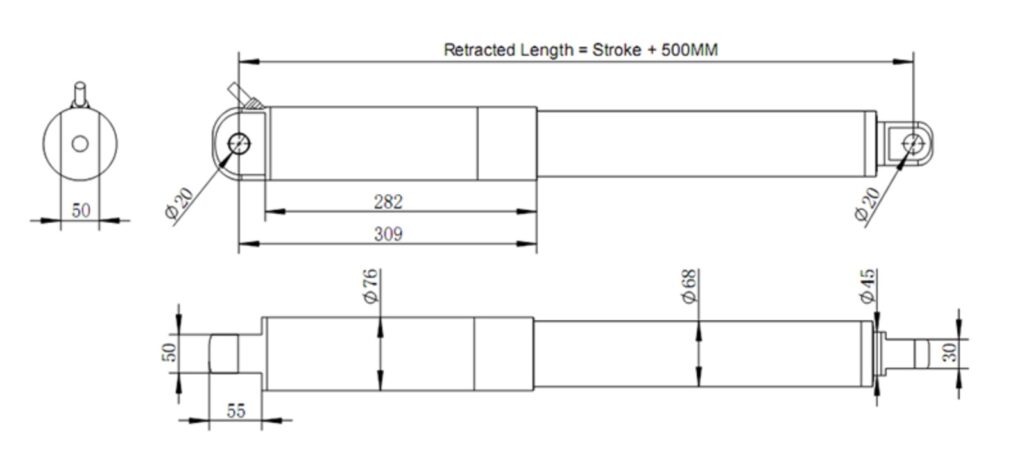

  • Minimum size: travel/2+ 550MM
  • Protection class: IP65
  • Ambient temperature: -45°C~+75°C
  • Other options: Synchronous control, integrated control, CAN bus
  • Manual operation during power outage

HTK78

View

  • PDF

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
