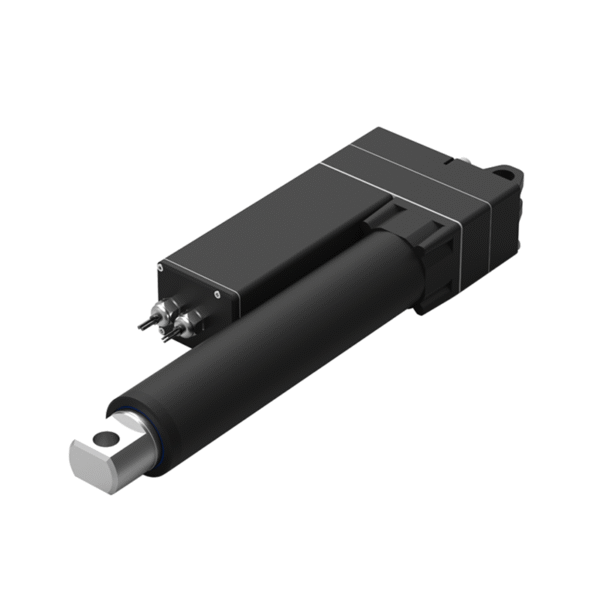

HTL2

  • Max. load: 20000 N
  • IP: IP66
  • Max. speed: 125 mm/s (@700N)
  • Stroke option: 50-900 mm
HTL2

Features:

  • Features:
  • Motor: DC brushless motor
  • Voltage: 24V, 48V DC,220V AC

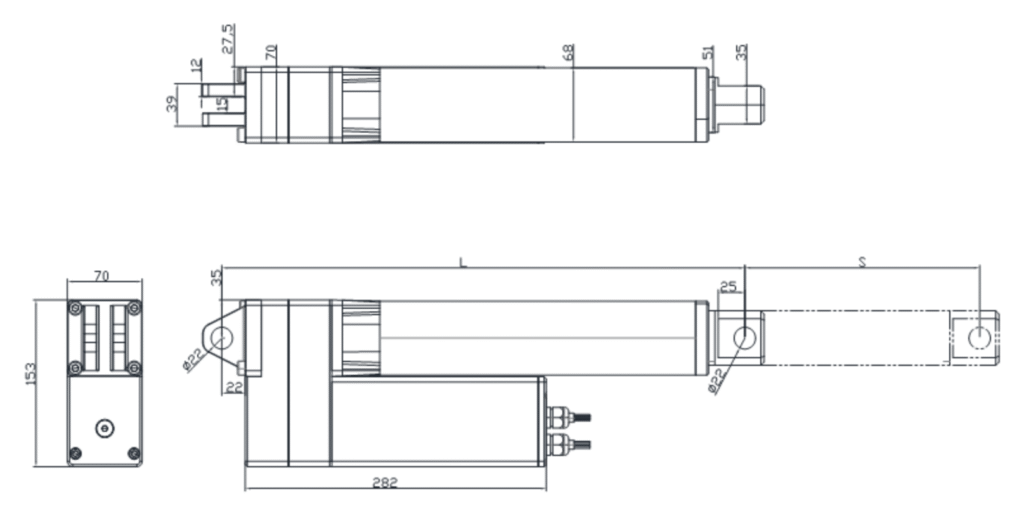

  • Min. Built-in dimension: Stroke + 250mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 20000N
  • Protection class: IP66
  • Screw type: Ball screw
  • Feedback optional: Potentiometer, Hall sensor, endpoint signal, Synchronous control, independent control, CANbus control,
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: black
  • Built-in electrical limited switch, not adjustable
  • Noise level: 60-68dB
  • Approvals: CE, ROHS

HTL2

HTL2 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 20,000 16,800 16,200 10,800 8,400 5,400 4800 2400 750
Free-load speed(mm/s) 3 4 5 7 9 14 16 31 125
Full-load speed(mm/s) 3 4 4 6 7 11 13 25 100
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 370 420 470 520 570 620 670 720 770
Net Weight(KG) 8.5 8.8 9.1 9.4 9.7 10.1 10.5 10.9 11.5



View

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
