Selecting the right electric linear actuator or electric cylinder (servo cylinder) involves far more than simply matching a thrust force and a stroke length from a product datasheet. For original equipment manufacturers (OEMs), machine builders, and automation engineers, linear actuators are critical links in mechanical power transmission. A miscalculation in duty cycle, screw efficiency, or lateral loading will quickly result in premature component failure, structural binding, or catastrophic motor burnout.

Unlike self-supporting lifting columns, which feature integrated structural guidance to handle massive bending moments, electric linear actuators and cylinders are primarily designed for pure axial thrust.

This comprehensive engineering guide outlines a step-by-step framework to evaluate, specify, and integrate the ideal linear drive solution for industrial automation, robotics, material handling, and heavy-duty machinery.

1. Map the True Axial Force Profile: Thrust, Pull, and Dynamic Spikes

The foundation of actuator selection is defining the load. However, a single “maximum load” value is insufficient for proper component sizing. You must analyze the complete force-over-time profile:

💡 Engineering Rule of Thumb: Always calculate the Root Mean Square (RMS) load across the full cycle rather than just the peak load. Size the motor and internal screw based on the continuous RMS load to avoid thermal overload, while ensuring the actuator’s mechanical structural limits can withstand the maximum peak shock load.

2. Analyze Rod Buckling and Side Load Constraints

The single most common cause of premature linear actuator failure is unintended lateral (side) loading. Standard industrial actuators and cylinders are designed to push and pull strictly along their longitudinal axis.

The Problem with Lateral Force:

If a lateral force is applied to the extending rod, it creates a leverage effect against the internal rod bushings and seals. This causes rapid seal wear, fluid or dust ingress, and eventually bends the internal screw or galling of the piston tube.

Critical Sizing Factors:

  1. External Guidance: If your application introduces side loads (e.g., pushing a heavy panel on a hinge), you must isolate the actuator by using external linear guide rails, linear bearings, or guide rods.
  2. Euler’s Buckling Limit: For long-stroke applications (typically over 500 mm) under heavy compression (thrust) loads, the extending rod acts as a structural column. You must verify that the combination of stroke length, rod diameter, and force does not exceed the critical buckling threshold, causing the rod to snap or bow outward.

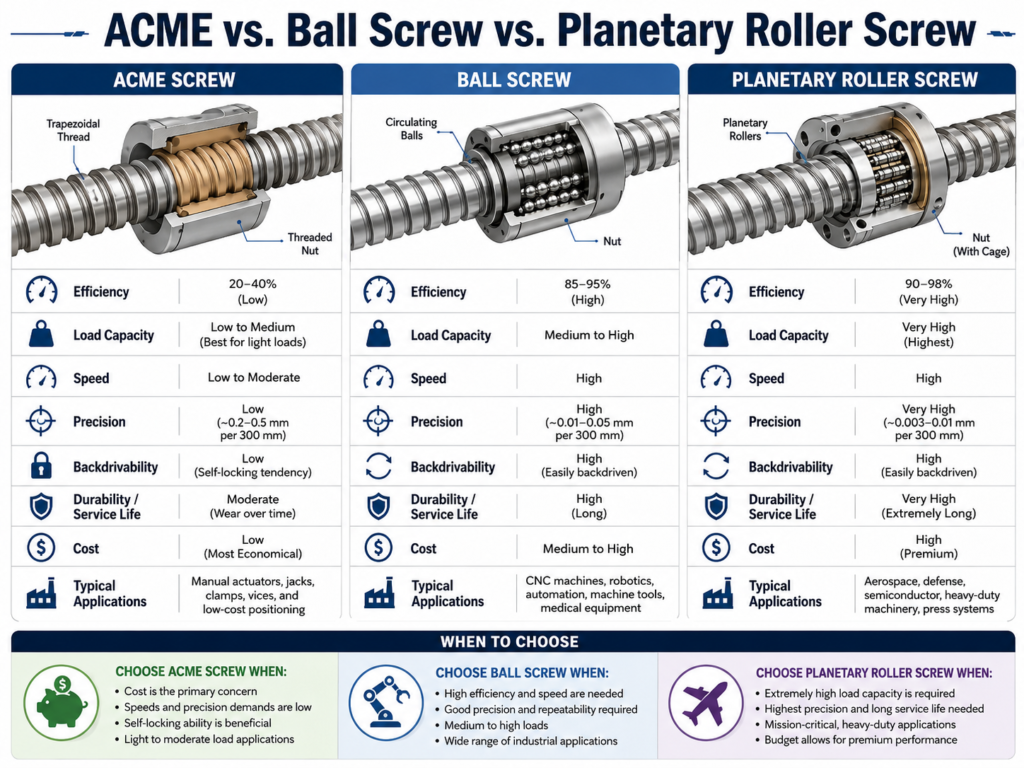

3. Select the Internal Drive Mechanism: ACME vs. Ball Screw vs. Planetary Roller Screw

ACME vs. Ball Screw vs. Planetary Roller Screw

1. ACME / Trapezoidal Lead Screws (Sliding Friction)

2. Ball Screws (Rolling Friction)

3. Planetary Roller Screws (Line Contact Rolling)

4. Align Motor Controls with Precision and Duty Cycle Requirements

The choice of motor drive directly controls the intelligence, repeatability, and duty cycle limits of the electric cylinder.

5. Form Factor & Mounting Configurations

Integrating the actuator into your structural layout requires choosing the right physical envelope and mounting style.

Physical Orientation:

Mounting Interfaces:

Because linear actuators must remain perfectly aligned with the load path, the mounting type is crucial:

6. Environmental Sealing & Material Specifications

Industrial, outdoor, and hygienic environments place severe stress on linear seals. When an actuator extends, the rod exposes a polished surface to the environment; when it retracts, it pulls any surface contaminants back through the rod seal.

7. Quick Selection Matrix: Linear Actuators vs. Electric Cylinders

Feature / MetricStandard Utility ActuatorPrecision Ball Screw ActuatorHeavy-Duty Servo Cylinder
Internal DriveACME Lead ScrewPrecision Ball ScrewBall or Planetary Roller Screw
Thrust CapabilityLow to Moderate (Up to 20 kN)Moderate to High (Up to 50 kN)Extreme (Up to 250+ kN)
Max SpeedSlow (2~100mm/s)Fast (Up to 1,000mm/s)High Dynamic (Up to 1,500+ mm/s)
Duty CycleIntermittent (10% – 25%)High (50% – 100%)Continuous (100% S1 Rating)
Positioning AccuracyLow (±1 ~ 3mm)High (±0.02mm)Ultra-High (±0.005 mm)

8. RFQ Checklist: Parameters to Prepare for a Technical Quotation

To minimize engineering lead times and ensure an accurate application evaluation, please prepare the following parameters for our technical team:

Technical FAQ: Selecting Electric Linear Actuators

Q1: When should I choose an electric cylinder over a hydraulic cylinder?

A: Electric cylinders are specified to replace hydraulics to achieve clean operation, precise positioning control, and lower total cost of ownership. Hydraulics are prone to fluid leaks, require continuous maintenance (pumps, valves, hoses, filters), consume massive idle energy, and lack smart programming capabilities. Electric servo cylinders provide closed-loop control over position, velocity, and force, require zero fluid maintenance, eliminate environmental contamination risks, and only consume energy when actively moving.

Q2: If a ball screw is more efficient, why would I ever choose an ACME lead screw actuator?

A: The primary reasons are cost efficiency and self-locking safety. ACME screws are significantly simpler and more economical to manufacture. Furthermore, their high mechanical friction creates a natural mechanical lock. If your application only runs a few times a day and must hold a heavy load safely in position when the power is shut off without relying on an expensive electrical holding brake, an ACME screw is the ideal engineering solution.

Q3: Can I mount an electric linear actuator in any orientation?

A: Yes, electric actuators can operate vertically, horizontally, or at any angle. However, the orientation alters the force profile. In vertical applications, the actuator must overcome the full force of gravity during extension and maintain static holding capacity during rest. In horizontal applications, the actuator only needs to overcome the friction force of the payload sliding on its guidance rails plus acceleration forces.

Q4: How do I calculate the expected operational lifetime of a ball screw actuator?

A: For precision ball screw and roller screw cylinders, operational life is calculated using modified bearing life formulas ($L_{10}$ life calculation), measured in millions of revolutions or kilometers of travel. The lifetime calculation depends entirely on the applied continuous dynamic load, travel stroke per cycle, and operational cleanliness. By providing your exact duty cycle and force profile, our engineering software can generate a precise, theoretical operational lifespan report for your application.
