Motorized exterior shutters are no longer used only as decorative building elements. In coastal areas, commercial buildings, villas, restaurants, and outdoor living spaces, shutters can provide shading, privacy, ventilation, rain protection, and additional security. For shutter manufacturers, the challenge is not simply to make the panel move, but to make it move safely, smoothly, and reliably in outdoor conditions.
Electric linear actuators offer a practical drive solution for selected shutter systems, especially where a panel, arm, or louver needs controlled linear movement.
Where Linear Actuators Can Be Used in Shutter Systems
Not every motorized shutter requires a linear actuator. For roll-down hurricane shutters, the main drive is usually a tubular motor or rolling shutter motor. However, linear actuators are highly suitable for shutter systems where a pushing or pulling motion is required.
Typical applications include:
- Motorized Bahama shutters
- Exterior hinged shutter panels
- Adjustable louver shutters
- Outdoor shading panels
- Ventilation shutters
- Custom architectural shutter systems
In these applications, the actuator can replace a manual support arm, telescopic stay, or mechanical linkage, allowing the shutter to open, close, or stop at a specific angle.
Motorized Bahama Shutters
Bahama shutters are usually mounted with a top hinge. The shutter panel opens outward from the bottom, creating shade while still allowing airflow and visibility. Traditionally, this type of shutter is supported by manual arms on both sides.
A linear actuator can be used to control this opening movement electrically. When extended, the actuator pushes the shutter panel outward. When retracted, it brings the panel back toward the window or wall.
This application is especially useful for:
- High windows that are difficult to reach manually
- Commercial buildings with multiple shutters
- Outdoor restaurants and coastal properties
- Smart home or building automation systems
- Shutters that require repeated daily adjustment

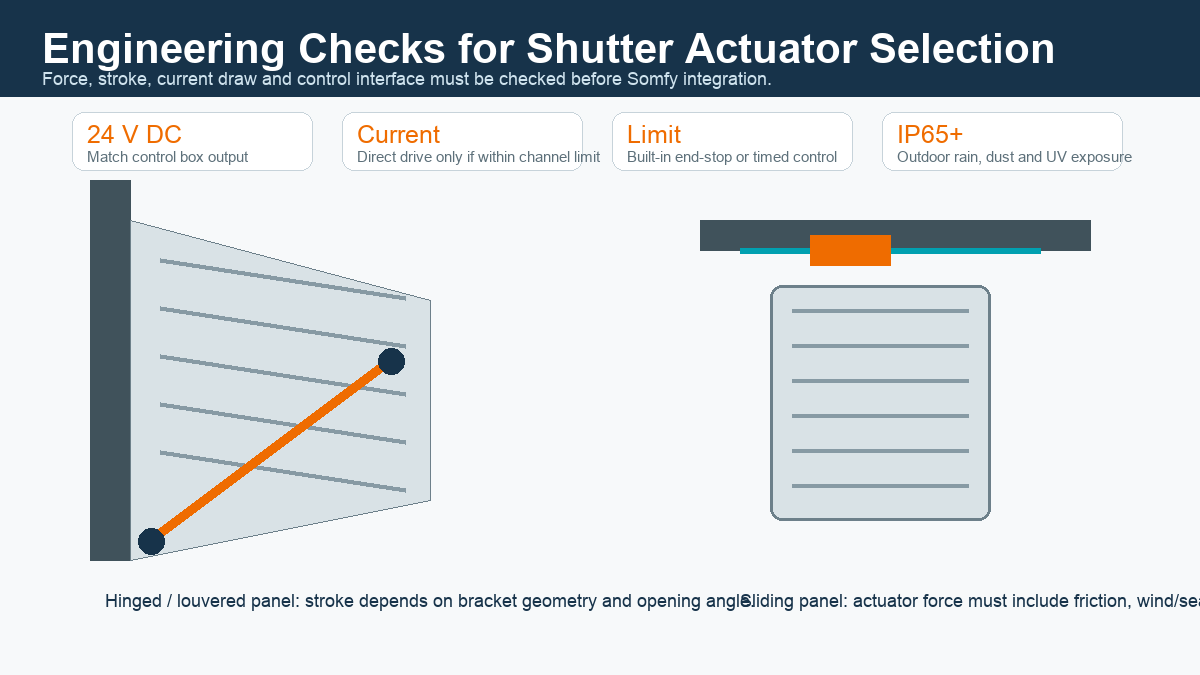

For this type of application, the actuator should be selected based on shutter size, weight, opening angle, mounting geometry, wind load, and outdoor exposure.
Information Needed Before Selecting an Actuator
To recommend the correct actuator for a motorized shutter project, the following information is usually required:
- Shutter type: Bahama shutter, hinged shutter, louver shutter, or custom system
- Shutter size and approximate weight
- Required opening angle
- Indoor or outdoor installation
- Exposure to rain, salt air, dust, or direct sunlight
- Required stroke length
- Required speed
- Voltage requirement
- One actuator or two synchronized actuators per shutter
- Available installation space
- Control method: switch, remote, control box, or building automation system
With this information, the actuator stroke, force, speed, mounting brackets, and control solution can be selected more accurately.
Somfy Control Box Compatibility: What Is Realistic?
Somfy has 24 V DC motor controller products in the animeo range. Somfy documentation for the animeo IB+ 4 DC 2A motor controller shows 24 V DC motor outputs and references 4 channels for 24 V DC motors, with technical data such as 4 x 2.3 A at 24 V DC in related datasheets. Another Somfy installation guide for the 4 DC 2A controller shows DC output values of 24 V, 2.5 A at 100% duty and 4.5 A at 50% duty.
That means a direct connection is possible only for a compatible low-current 24 V DC actuator. If the shutter actuator needs higher thrust and draws more current than the Somfy output can safely supply, the correct method is not to oversize the Somfy channel. The safer method is to let the Somfy control signal trigger a relay, reversing contactor, or DC motor driver that is rated for the actuator.
FAQ
Can a linear actuator connect directly to a Somfy control box?
Only if the actuator voltage, current draw, wiring logic, and limit behavior match the specific Somfy controller output. Otherwise, use an external driver or relay interface.
What actuator voltage is most relevant for Somfy DC control?
For Somfy 24 V DC motor controllers, a 24 V DC actuator is the practical starting point. The current rating still needs to be verified.
Can a linear actuator be used for hurricane shutters?
Only as part of an engineered and approved shutter system. Do not replace a certified hurricane shutter motor or locking system without checking compliance requirements.
