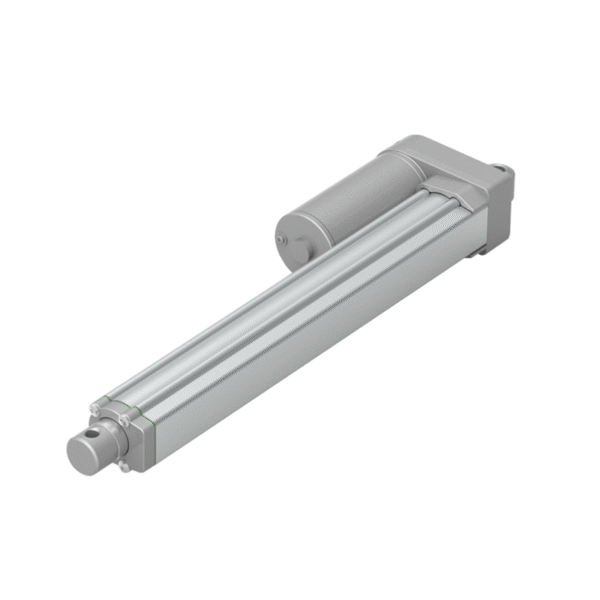

HTA15

  • Max. load: 1400 N
  • IP: IP66
  • Max. speed: 80 mm/s (@90N)
  • Stroke option: 20-900 mm
HTA15

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

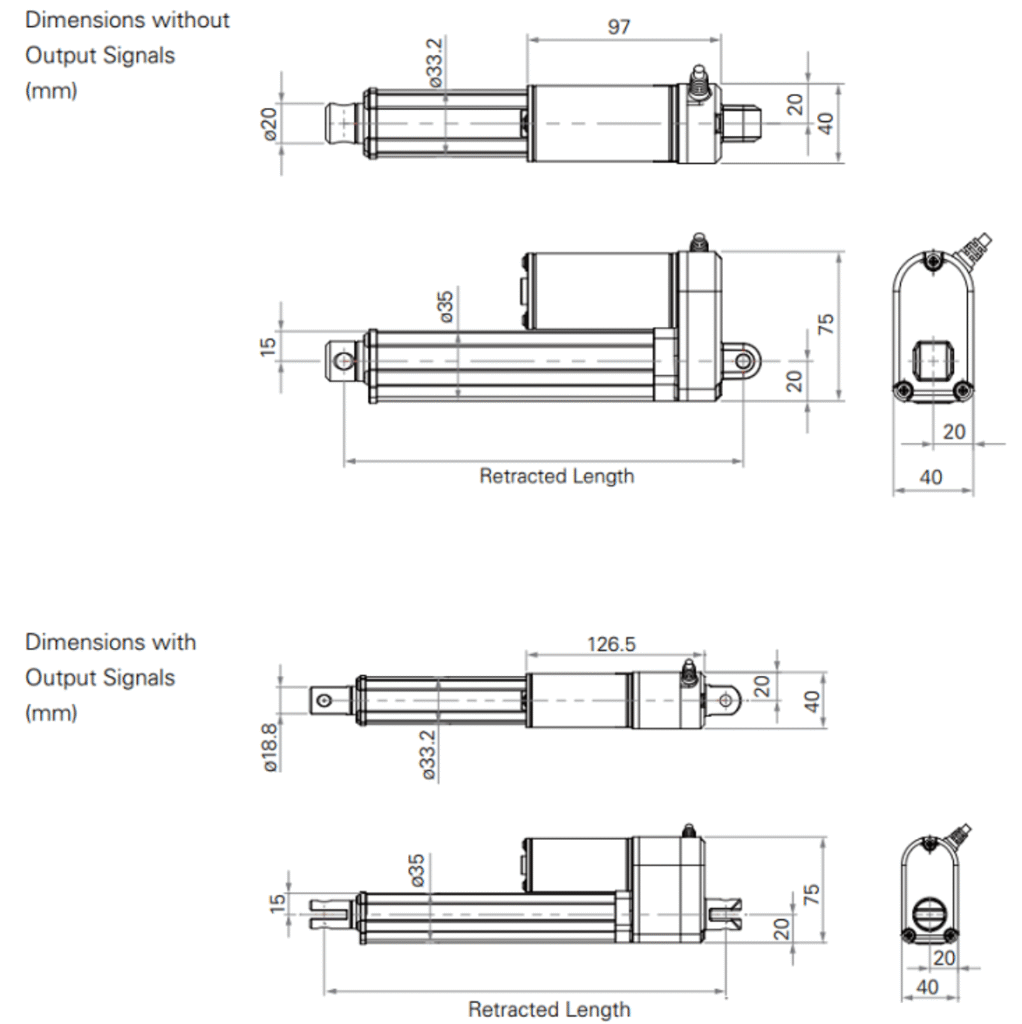

  • Built-in dimension: Stroke + 105mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 1400N
  • Protection class: IP66
  • Feedback optional: Potentiometer
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level: 55-60dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).
  • Matching with all GEMING control boxes and controls.

HTA15

HTA15 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 1,400 800 450 300 250 200 100 80
Free-load speed(mm/s) 5.0 11 15 22 26 33 53 80
Full-load speed(mm/s) 4.0 8.9 12 17.5 21 26 42 64
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 205 265 305 365 420 470 520 570 620
Net Weight(KG) 0.8 0.9 1 1.1 1.2 1.3 1.5 1.6 2.2

View

setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
