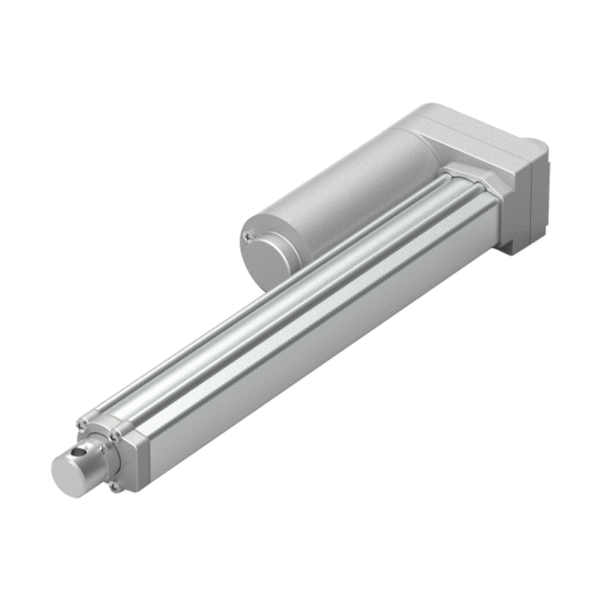

HTA18

  • Max. load: 3500 N
  • IP: IP68
  • Max. speed: 65 mm/s (@300N)
  • Stroke option: 20-900 mm
HTA18

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

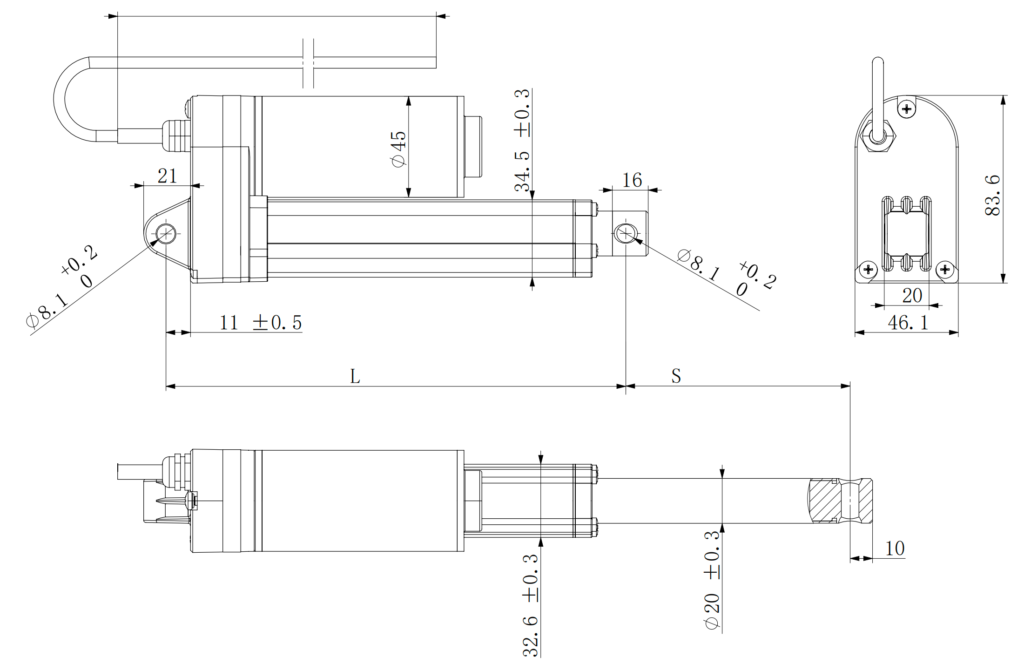

  • Built-in dimension: Stroke + 105mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 3500N
  • Protection class: IP68
  • Feedback optional: Potentiometer, Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level: 55-60dB
  • Approvals: CE
  • Matching with all GEMING control boxes and controls.

HTA18

HTA18 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)4,5002,2001,5001,000500300
Free-load speed(mm/s)5.010.015224466
Full-load speed(mm/s)4.08.012173553
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)205255305355420470520570620
Net Weight(KG)1.21.41.61.82.12.32.52.73.2

View

setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
