HTA2 Internal Control

  • Max. load: 12000N
  • IP grade: IPX4
  • Motor: brush DC
HTA2 Internal Control

Features:

  • Motor: 24VDC
  • Control box: built-in, 110-240VAC, optional globe power plug
  • Matching with all GEMING controls.

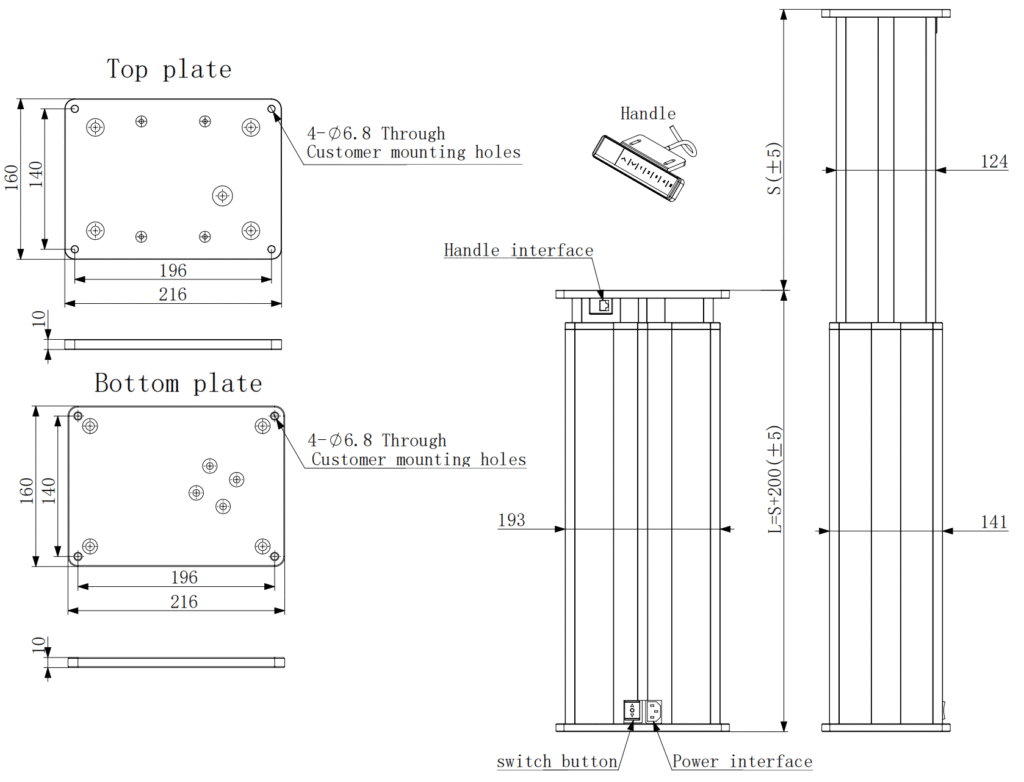

  • Built-in dimension: Stroke + 200mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 12000N
  • Static bending moment: 1000NM
  • Dynamic bending moment:800NM
  • Protection class:IP54
  • Colour: anodised aluminium
  • Built-in electrical limited switch, not adjustable
  • Noise level:48-52dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).

Why Global Engineers Choose GEMING

With over 16 years of dedicated experience in electric linear actuators and lifting columns, GEMING (Zhejiang Ge Ming Driven Technology Co., Ltd.) supports OEM engineers with custom linear motion solutions for industrial automation, medical equipment, ergonomic workspaces, outdoor systems, and robotic applications. Our engineering team reviews load, stroke, speed, duty cycle, installation space, control logic, and environmental requirements before recommending a product configuration.

For safety-critical or heavy-duty projects, GEMING can provide application review, CAD/STEP support, technical documentation, and custom actuator or lifting column development based on verified project requirements.

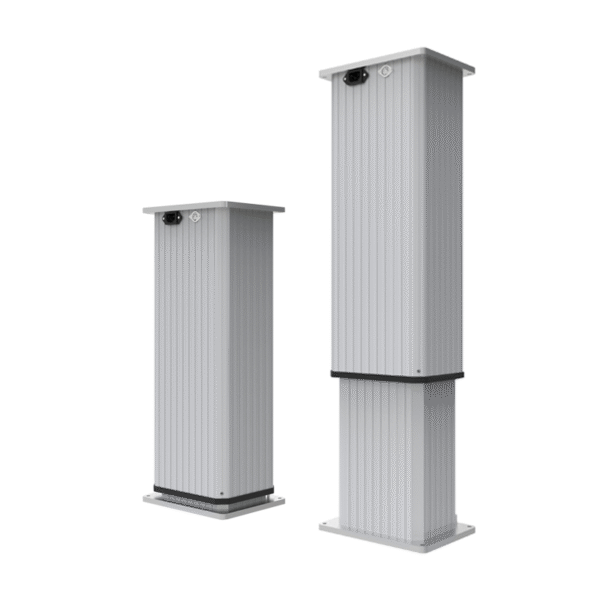

HTA2 Internal Control Lifting Column Engineering Positioning

This internal-control lifting column integrates the control system inside the column assembly, reducing external wiring and control-box space. It is suitable for compact medical, laboratory, workstation, and equipment designs where a clean installation layout is important.

Use this model when your project needs a configurable linear motion component rather than an off-the-shelf catalog-only part. For accurate selection, prepare the required load, stroke, voltage, speed, duty cycle, mounting direction, and control interface.

HTA2 Internal Control Lifting Column Technical Resources

HTA2 Internal Control Lifting Column FAQ

How do you synchronize multiple HTA2 internal control columns?

The synchronization method depends on the selected internal control configuration. GEMING can provide wiring and control recommendations for paired or multi-column systems during project review.

What information should I provide before requesting a quote?

Please provide load, stroke, speed, voltage, duty cycle, installation space, mounting direction, environmental conditions, and any control or feedback requirements.

HTA2 Internal Control

HTA2 （60F）Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)4,5002,3001,100
Free-load speed(mm/s)5.51122
Full-load speed(mm/s)4.5918
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)280330380430500550600650700
Net Weight(KG)4.85.56.26.97.68.399.710.4
HTA2（A3） Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)12,0007,5005,5003,7002,8001,8001100
Free-load speed(mm/s)5101320264066
Full-load speed(mm/s)481016213253
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)28033038043500550600650700
Net Weight(KG)4.85.56.26.97.68.399.710.4
