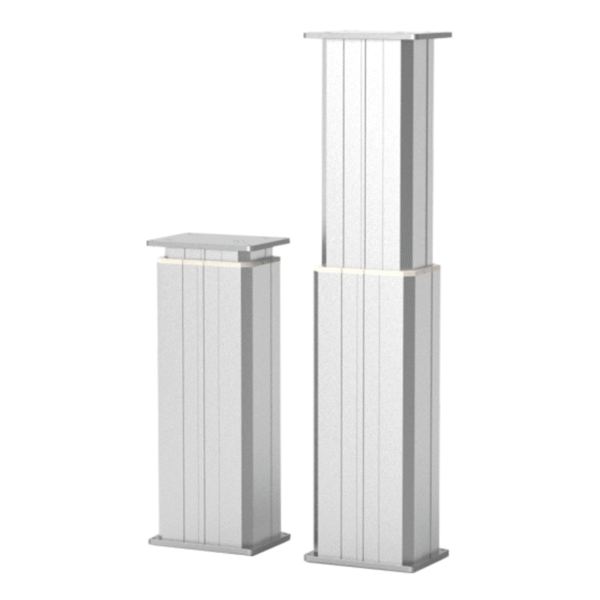

HTA2 Lifting Column

  • Max. load: 12000N
  • IP grade: IP54
  • Motor: DC brush motor
HTA2 Lifting Column

Features:

  • Motor: 12V DC, 24V DC, 36V DC, 48V DC

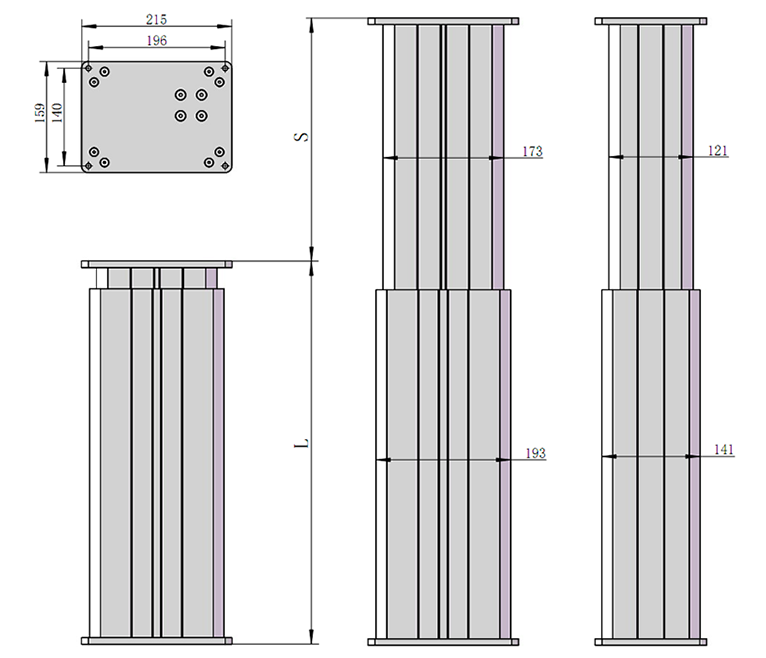

  • Size: two sections, 193*141mm, rectangular
  • Built-in dimension: Stroke + 200mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 12000N
  • Static bending moment: 1800NM
  • Dynamic bending moment:1000NM
  • Protection class:IP54
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level:48-52dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).
  • Matching with all GEMING control boxes and controls.

Why Global Engineers Choose GEMING

With over 16 years of dedicated experience in electric linear actuators and lifting columns, GEMING (Zhejiang Ge Ming Driven Technology Co., Ltd.) supports OEM engineers with custom linear motion solutions for industrial automation, medical equipment, ergonomic workspaces, outdoor systems, and robotic applications. Our engineering team reviews load, stroke, speed, duty cycle, installation space, control logic, and environmental requirements before recommending a product configuration.

For safety-critical or heavy-duty projects, GEMING can provide application review, CAD/STEP support, technical documentation, and custom actuator or lifting column development based on verified project requirements.

HTA2 Lifting Column Engineering Positioning

A compact dual-stage electric lifting column for medical equipment, ergonomic workstations, light industrial automation, and smart furniture. HTA2 is positioned for OEM projects that need stable vertical motion, quiet operation, and flexible integration without over-specifying a heavy industrial column.

Use this model when your project needs a configurable linear motion component rather than an off-the-shelf catalog-only part. For accurate selection, prepare the required load, stroke, voltage, speed, duty cycle, mounting direction, and control interface.

HTA2 Lifting Column Technical Resources

HTA2 Lifting Column FAQ

Is the HTA2 lifting column suitable for medical and ergonomic applications?

Yes. HTA2 can be configured for quiet synchronized movement, compact installation, and feedback control for hospital beds, diagnostic tables, workstations, and similar adjustable-height equipment.

What information should I provide before requesting a quote?

Please provide load, stroke, speed, voltage, duty cycle, installation space, mounting direction, environmental conditions, and any control or feedback requirements.

HTA2 Lifting Column

HTA2 Load V.S. Speed（80w motor） Load ±10％（N） Speed ±2（mm/S）
Max load(N) 4,500 2,200 1,000
Free-load speed(mm/s) 5.7 11 9
Full-load speed(mm/s) 4.5 9 18
HTA2 Load V.S. Speed（150w motor） Load ±10％（N） Speed ±2（mm/S）
Max load(N) 12,000 7,000 5,500 3,550 2800 1800 1100
Free-load speed(mm/s) 5 10 13 20 26.5 40 66.5
Full-load speed(mm/s) 4 8 10.5 16 21 32 53
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 280 330 380 430 500 550 600 650 700
Net Weight(KG) 4.8 5.5 6.2 6.9 7.6 8.3 9 9.7 10.4
