HTA2 Munual Lifting Column

  • Max. load: 6000N
  • IP grade: IP54
  • Manual Operated

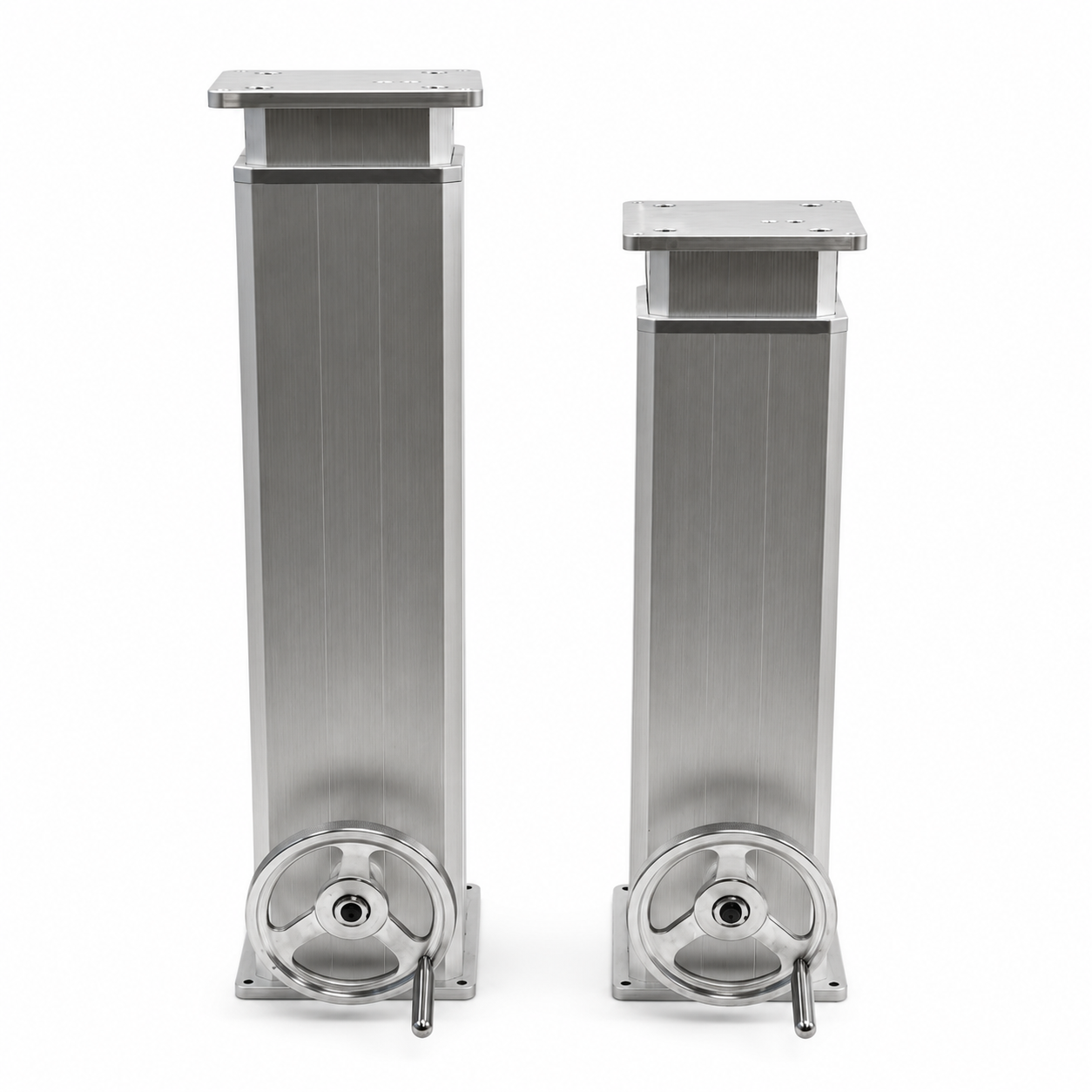

HTA2 manual lifting column

Features:

  • Drive mode: hand crank/manual
  • Built-in dimension: Stroke + 200mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 5000N
  • Static bending moment: 1000NM
  • Dynamic bending moment:800NM
  • Protection class:IP54
  • Colour: anodised aluminium
  • Noise level:48dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).

HTA2 Munual Lifting Column

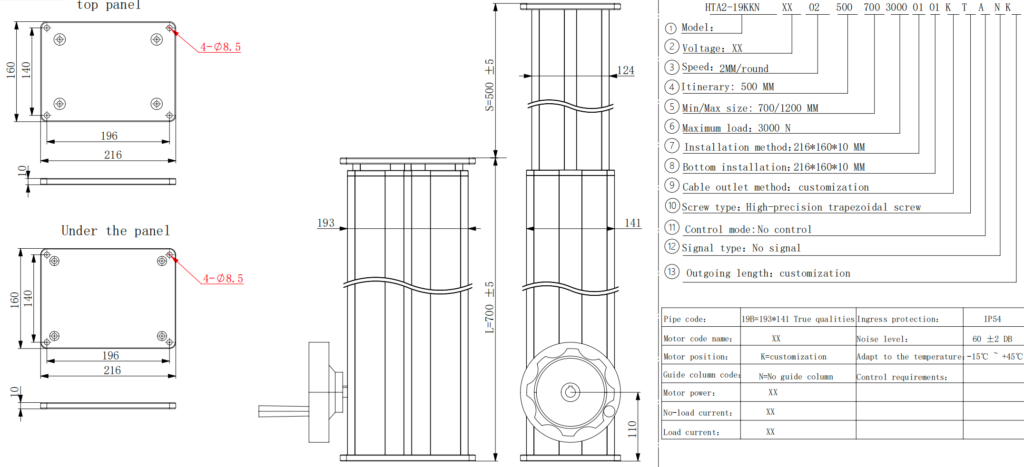

HTA2 manual lifting column drawing

HTA2 （60F）Load V.S. Speed Load ±10％（N） Speed ±2（mm/cycle）
Max load(N) 5,000 2,000
Free-load speed(mm/cycle) 3 4
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 300 350 400 450 500 550 600 650 700
Net Weight(KG) 4.8 5.5 6.2 6.9 7.6 8.3 9 9.7 10.4

View

  • PDF

https://gemingtech.com/wp-content/uploads/2026/07/HTA2-manual-lifting-column-S500-L700.glb

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
