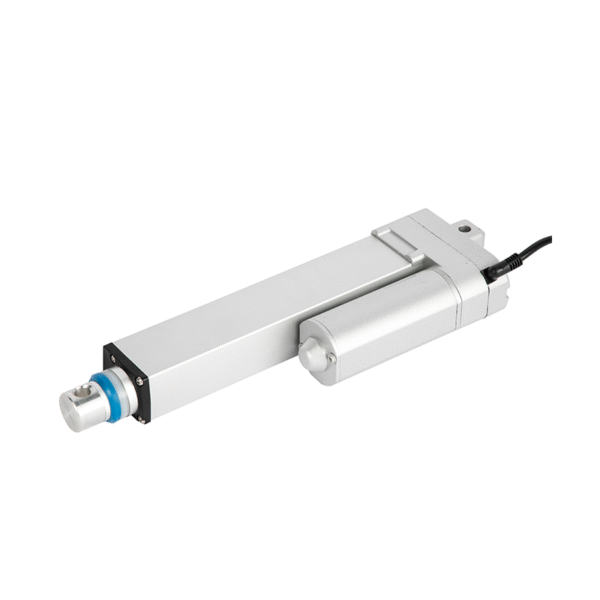

HTA23 Telescopic

  • Max. load: 2300 N
  • IP: IP65
  • Max. speed: 72 mm/s (@500N)
  • Stroke option: 200-1600 mm
HTA23 Telescopic

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC
  • Built-in dimension: Stroke/2 + 185mm(+/-3)
  • Stroke length: Max 1600mm(+/-3)
  • Max load: 2500N
  • Protection class: IP65
  • Feedback optional: Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Matching with all GEMING control boxes and controls.

HTA23 Telescopic

HTA23 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)2,7002,0001000500
Free-load speed(mm/s)9183672
Full-load speed(mm/s)7142857
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)2003004005006007008009001000
Retracted length(MM)280330380430480530580630680
Net Weight(KG)1.21.41.61.82.12.32.52.73.2

View

  • PDF
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
