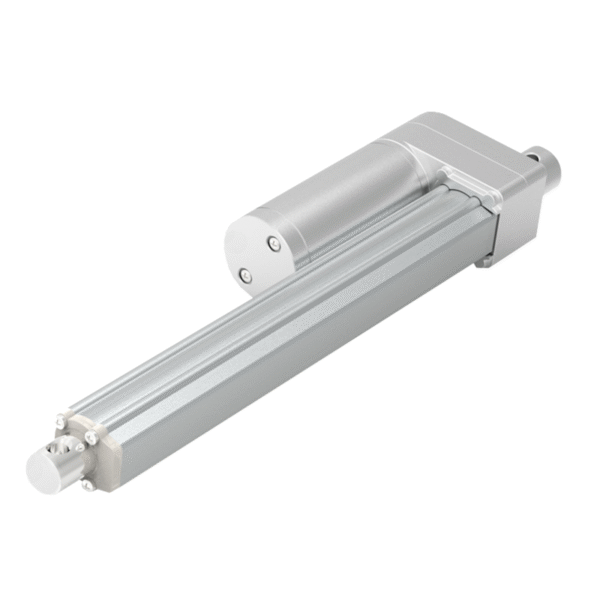

HTA28

  • Max. load: 3500 N
  • IP: IP66
  • Max. speed: 40 mm/s (@600N)
  • Stroke option: 20-900 mm
HTA28

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

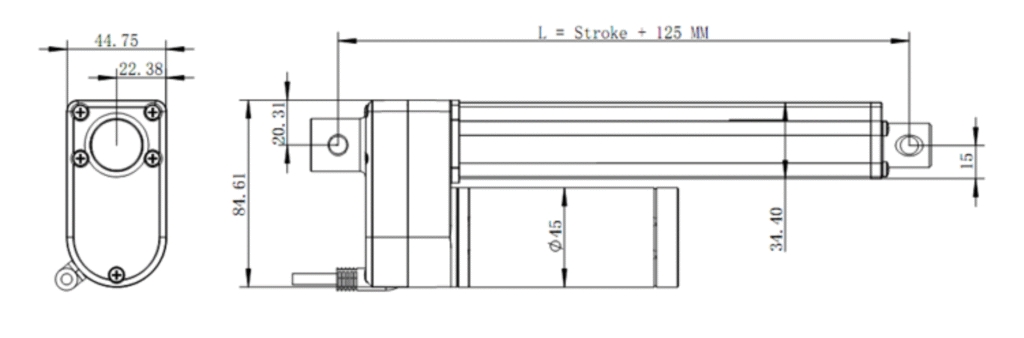

  • Built-in dimension: Stroke + 125mm(+/-3)
  • Stroke length: Max 600mm(+/-3)
  • Max load: 3500N
  • Protection class: IP66
  • Duty cycle: 2min on, 18min off(10%)
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level: 48dB
  • Approvals: CE
  • Matching with all GEMING control boxes and controls.

HTA28

HTA28 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)5,8004,300290021001400380019001250950600
Free-load speed(mm/s)2.95.58.511176.61319.52639
Full-load speed(mm/s)2.34.5791451015.52131
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)225275325375425475525575640
Net Weight(KG)1.21.41.61.82.12.32.52.73.2
