HTB60E

  • Max. load: 6000 N
  • IP: IP43
  • Max. speed: 42mm/s (@500N)
  • Stroke option: 20-800 mm
HTB60E

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC

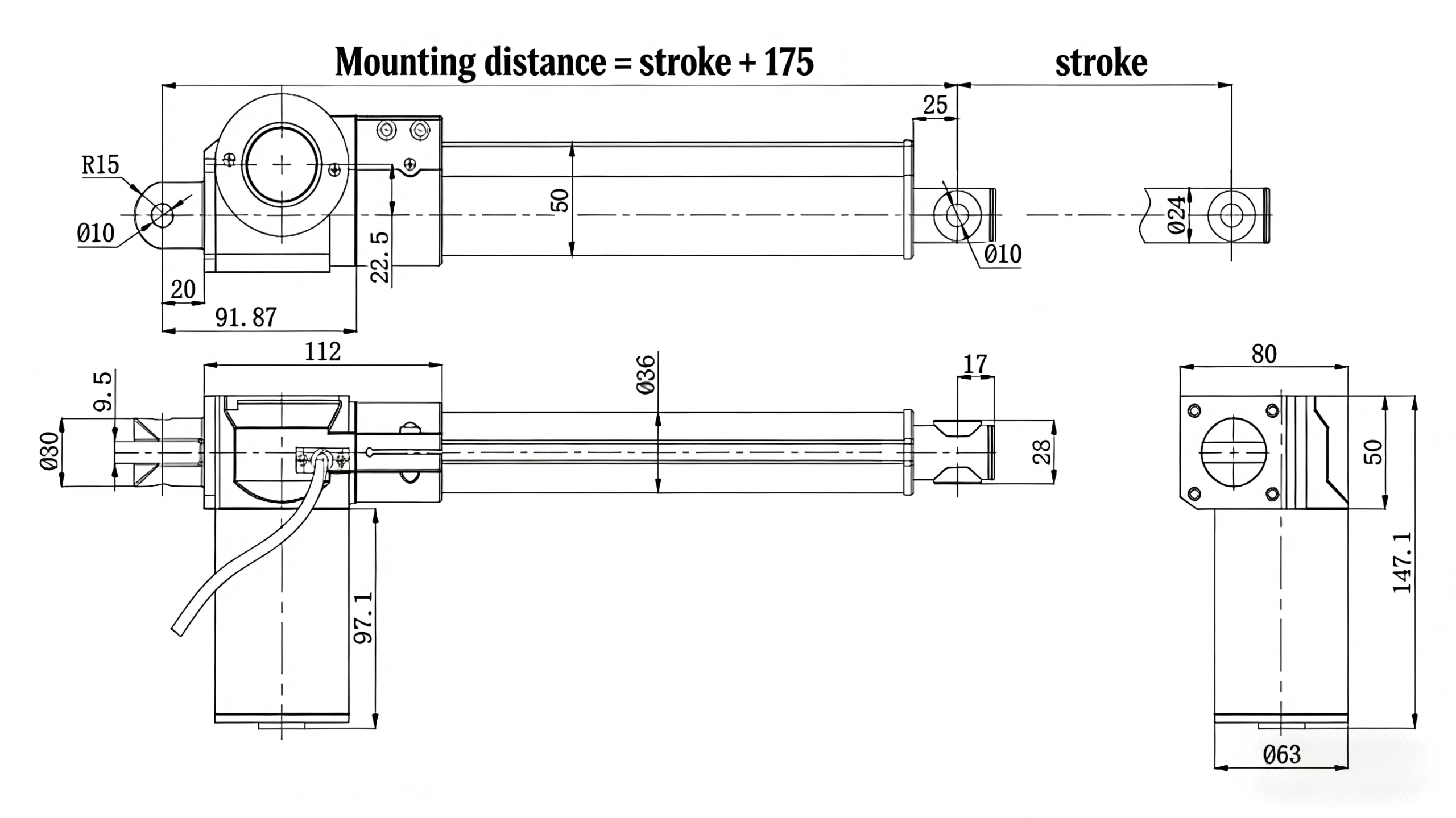

  • Built-in dimension: Stroke + 175mm(+/-3)
  • Stroke length: Max 800mm(+/-3)
  • Max load: 6000N
  • Protection class: IP43
  • Feedback optional: Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -15°C~+45°C
  • Duty cycle: 10%. 2min on, 18min off.
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable

HTB60E

Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)6,0004,0002,0001,000500
Free-load speed(mm/s)510223042
Full-load speed(mm/s)46122030
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450…
Retracted length(MM)275325375425475540590640…
Net Weight(KG)1.51.82.12.42.73.13.23.6…

View

  • PDF
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
