HTE2

  • Max. load: 6050N
  • IP grade: IPX4
  • Motor: DC brush motor
HTE2

Features:

  • Motor: 12V DC, 24V DC

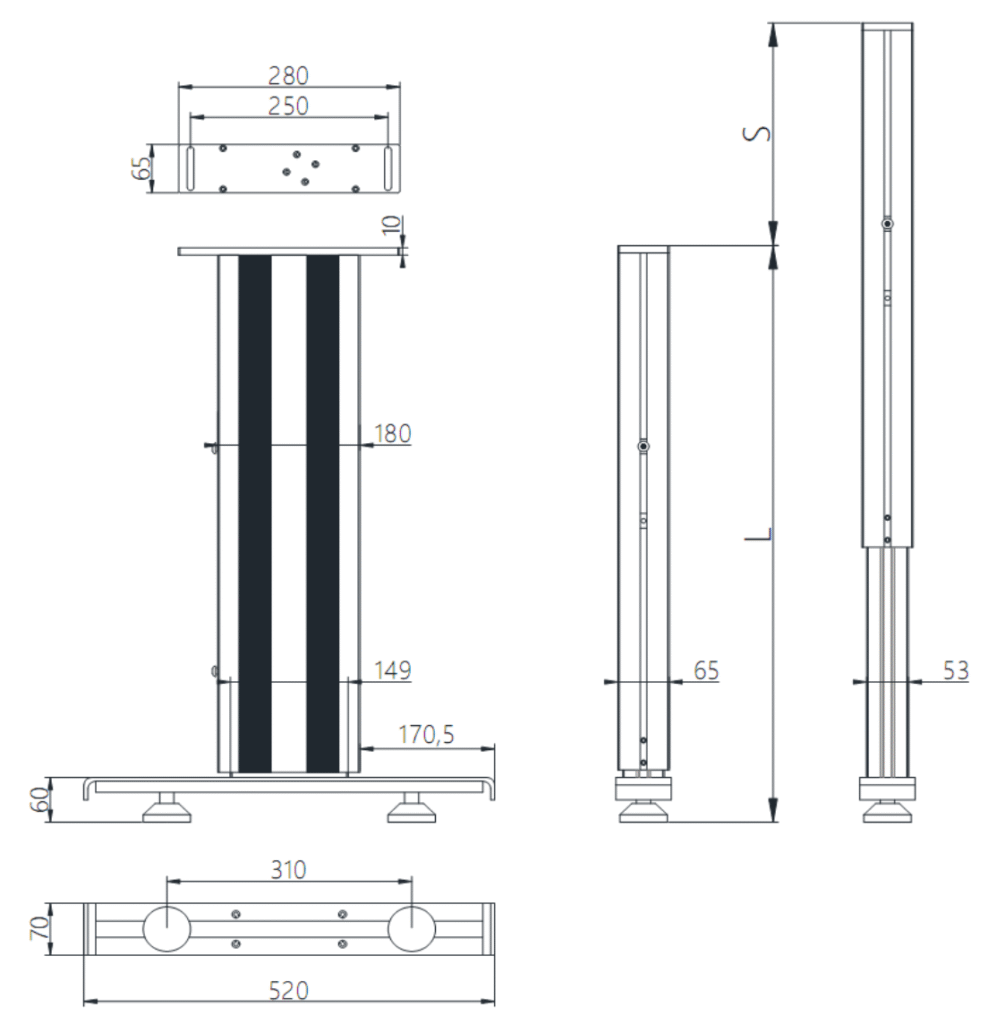

  • Size: two sections, 180*65mm, rectangle
  • Built-in dimension: Stroke + 200mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 6050N
  • Protection class:IP54
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level:48-52dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).
  • Matching with all GEMING control boxes and controls.

Why Global Engineers Choose GEMING

With over 16 years of dedicated experience in electric linear actuators and lifting columns, GEMING (Zhejiang Ge Ming Driven Technology Co., Ltd.) supports OEM engineers with custom linear motion solutions for industrial automation, medical equipment, ergonomic workspaces, outdoor systems, and robotic applications. Our engineering team reviews load, stroke, speed, duty cycle, installation space, control logic, and environmental requirements before recommending a product configuration.

For safety-critical or heavy-duty projects, GEMING can provide application review, CAD/STEP support, technical documentation, and custom actuator or lifting column development based on verified project requirements.

HTE2 Lifting Column Engineering Positioning

HTE2 is a lightweight and cost-effective electric lifting column for office automation, commercial displays, smart furniture, and light-duty adjustable equipment. It is selected where smooth vertical movement and simple integration are more important than heavy-load capacity.

Use this model when your project needs a configurable linear motion component rather than an off-the-shelf catalog-only part. For accurate selection, prepare the required load, stroke, voltage, speed, duty cycle, mounting direction, and control interface.

HTE2 Lifting Column Technical Resources

HTE2 Lifting Column FAQ

What is the primary maintenance requirement for the HTE2?

HTE2 is designed for low-maintenance use in light-duty applications. Maintenance needs depend on duty cycle, environment, and load, and can be reviewed during project selection.

What information should I provide before requesting a quote?

Please provide load, stroke, speed, voltage, duty cycle, installation space, mounting direction, environmental conditions, and any control or feedback requirements.

HTE2

HTE2 Load V.S. Speed（3400 RPM）Load ±10％（N）Speed ±2（mm/S）
Max load(N)4,6502,3001,5501,150750
Free-load speed(mm/s)5.5111722.534
Full-load speed(mm/s)4.5913.51827
HTE2 Load V.S. Speed（2600RPM）Load ±10％（N）Speed ±2（mm/S）
Max load(N)6,0503,0002,0001,5001,000
Free-load speed(mm/s)48.5131726
Full-load speed(mm/s)3.56.51013.520.5
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)280330380430500550600650700
Net Weight(KG)4.85.56.26.97.68.399.710.4
