HTK56

  • Max. load: 1500 N
  • IP: IP66
  • Max. speed: 95.2 mm/s
  • Stroke option:  200mm, 1200mm
HTK56

Features:

  • Motor: Permanent magnet DC motor
  • Voltage: 12V DC,24V DC，36V DC，48V DC
  • Stroke length: 200~1200MM
  • Maximum speed under full load: 95 mm / s (load 200N)
  • Minimum speed under full load: 11 mm / s (load 1,500N)
  • Max load: 1500N
  • Protection class: IP66
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: black
  • Duty cycle: 25%
  • High-strength stainless steel casing protects the motor and gears.
  • Other options: Hall effect sensor, passive signal
  • Limit switch: (Built-in: Not adjustable)

HTK56

HTK56 Series Load ±10％（N）  Speed±2（mm/S）
Max load(N) 1,500 1,200 900 450 300 200
Free-load speed(mm/s) 10.7 18.8 26.1 53.3 78.4 95.2
Full-load speed(mm/s) 8.5 15.0 20.9 42.7 62.7 76.2

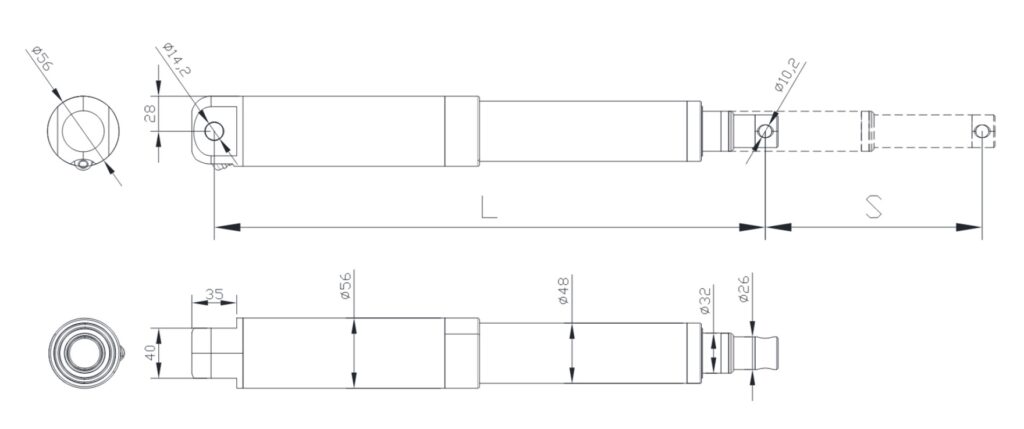

HTK56 Series stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 200 300 400 500 600 700 800 900 1000
Retracted length(MM) 450 500 550 600 650 700 800 850 900
Net Weight(KG) 2.4 2.7 3.0 3.3 3.6 3.9 4.2 4.5 4.8
