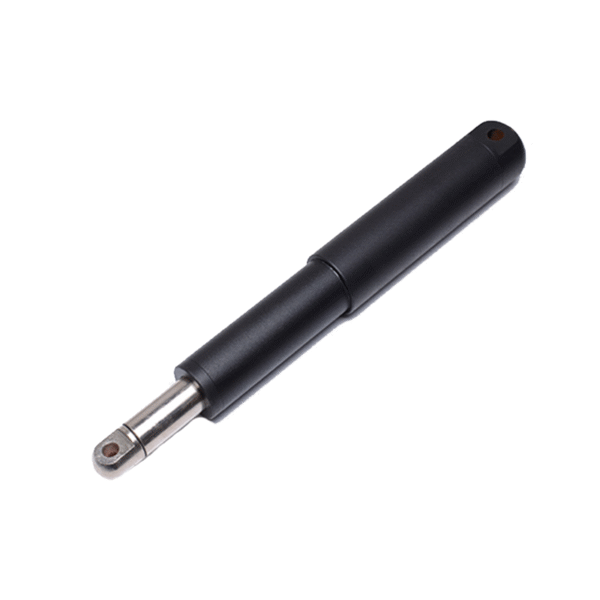

HTK75

  • Max. load: 28000 N
  • IP: IP66
  • Max. speed: 100 mm/s (@500N)
  • Stroke option: 50-900 mm
HTK75

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48VDC
  • Built-in dimension: Stroke + 500mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 28000N
  • Protection class: IP66
  • Feedback optional: Hall sensor
  • Duty cycle: 2min on, 18min off(10%)
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: Black
  • Limited switch: built-in, not adjustable
  • Approvals: CE
  • Matching with all GEMING HTT series control boxes.

HTK75

HTK75 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)31,00016,0008,0006,1004,2002,9002,1001,4501,100550
Free-load speed(mm/s)1.83.579131926385090
Full-load speed(mm/s)1.42.85.67101521304080
Stroke V.S. Retracted lengthstroke ±2（mm)retracted length ±2（mm）
Stroke(MM)100150200250300350400450500
Retracted length(MM)65070075080085090095010001050
Net Weight(KG)8.58.89.19.49.710.110.510.911.5

View

setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
