HTM65 Electric Linear Actuator

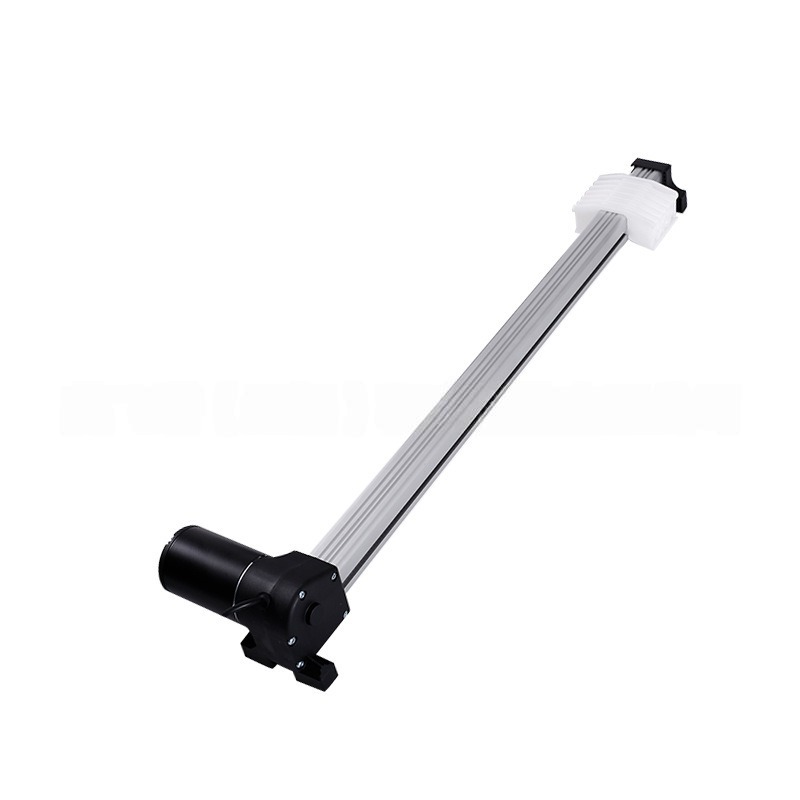

HTM65 electric linear actuator overview

The HTM65 is a configurable electric linear actuator for equipment that requires controlled linear movement with an axial load of up to 6000N. Its compact retracted-length relationship and selectable stroke make it suitable for OEM projects where force, installation space and electrical supply must be evaluated together.

Confirmed product parameters

The final speed, duty cycle, mounting arrangement, feedback or limit-switch configuration, environmental protection and operating temperature must be confirmed for the selected build. A 6000N maximum-load figure alone is not enough to approve an application.

Where HTM65 may be used

Potential uses include industrial adjustment mechanisms, access panels, lifting fixtures and equipment modules that need repeatable powered extension and retraction. Suitability depends on the actual load direction, side load, cycle frequency, stroke, speed and mounting geometry. The actuator should not be used as a structural guide; the machine should provide appropriate guidance where lateral forces may occur.

How to select an HTM65 configuration

1. Define the maximum working load and include friction, acceleration and an engineering safety margin.
2. Confirm the required working stroke and verify that the available space can accommodate the retracted length.
3. Select 12V or 24V DC to match the machine power and control architecture.
4. Check the required speed and duty cycle together, because both affect motor loading and temperature rise.
5. Review mounting points, side-load control, cable routing, end-of-stroke protection and any feedback requirement.
6. Confirm the required environmental protection and operating-temperature range before ordering.

Product parameter selection example

For a project requiring 400 mm travel on a 24V DC machine, the preliminary installation-length check is 400 + 155 = 555 mm. The engineering review must then confirm that the real axial load, required speed, duty cycle, mounting geometry and environmental conditions are compatible with the selected actuator. This example explains the sizing sequence; it is not a final product approval.

Related engineering resources

Learn how an electric linear actuator works, compare the broader electric linear actuator range, review the custom linear actuator design process, or use the selection calculator as an initial screening aid. For a quotation, send GEMING the load, stroke, speed, duty cycle, voltage, mounting and environment requirements through the contact page.

Frequently asked questions

What is the maximum load of the HTM65?

The published maximum axial load is 6000N. The usable load for a specific machine must also account for installation geometry, side load, speed, duty cycle and safety margin.

Which voltage options are available?

The confirmed options are 12V DC and 24V DC.

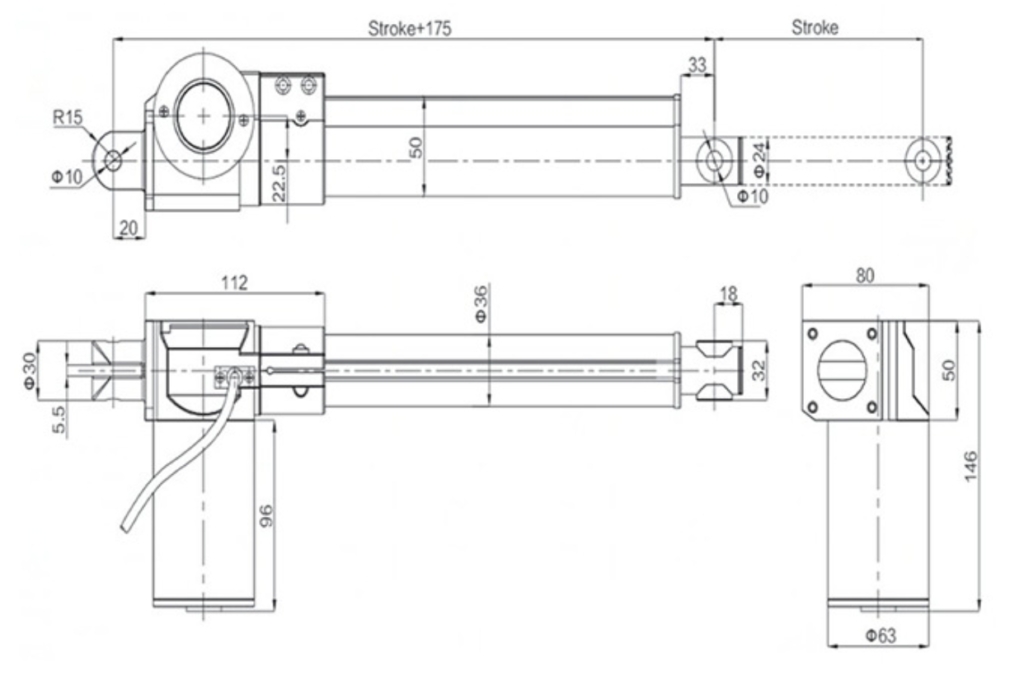

How is the minimum installation length calculated?

The published relationship is L = stroke + 155 mm. A 400 mm stroke therefore requires a preliminary minimum-length allowance of 555 mm.
