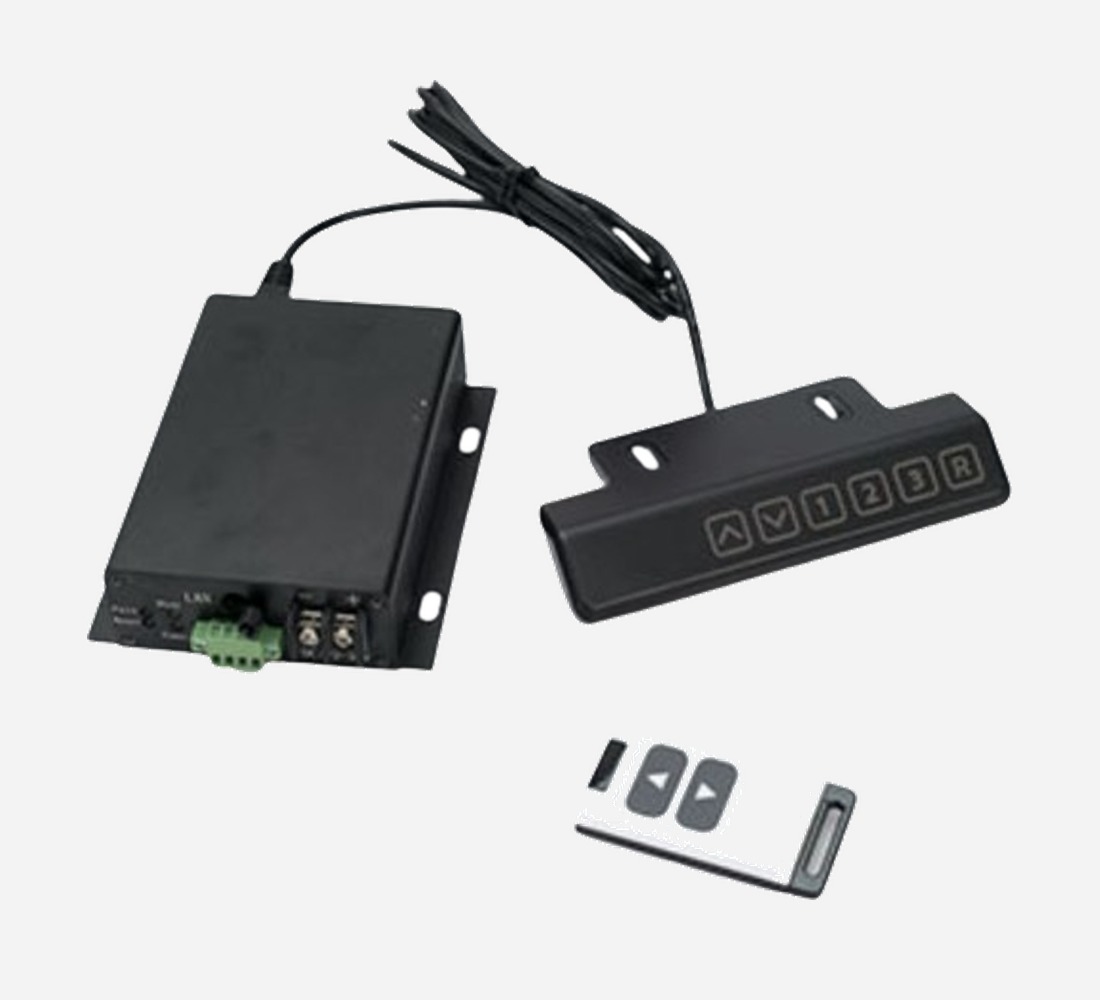

The HTT2W DC controller is specially designed for 2-motor synchronous lifting products. Through manual or wireless operation, it can achieve height limit adjustment, system locking, and anti-collision sensitivity. It ensures the synchronization and smooth operation of the lifting system.
Features
Drive motors: 2
Operation: synchronous
Input voltage: 12-36V DC universal
Output voltage: 12-36V DC universal
Single-channel output current: 15A,25A
Color: Black
Casing material: Flame-retardant ABS
Current limiting, overload protection
Overheat protection
Short-circuit protection
Insulation function
With mounting holes
Usage
Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
Ambient operating temperature: -20°C to +80°C
CE, RoHS certified
Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.
In 2025, the same customer reordered the identical model for a new project.
