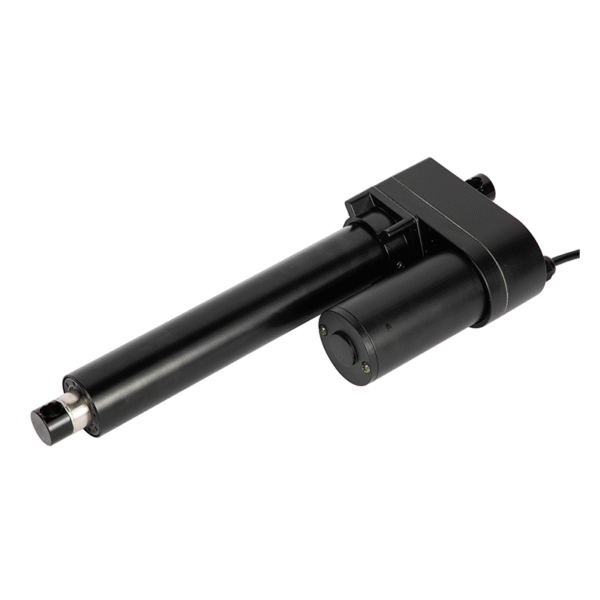

HTW10

  • Max. load: 10000 N
  • IP: IP66
  • Max. speed: 160 mm/s (@1000N)
  • Stroke option: 50-1000 mm
HTW10

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 72V DC
  • Min Built-in dimension:

Stroke + 200mm, with Potentiometer: Stroke+250mm(+/-3)

  • Stroke length: Max 900mm(+/-3)
  • Max load: 10000N
  • Protection class: IP66
  • Feedback optional: Potentiometer, Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Clutch: optional
  • Manual Override: Optional
  • Built-in electrical limited switch, not adjustable
  • Noise level: 58-68dB
  • Compliance: Designed to meet CE and RoHS standards.
  • Quality Proof: 100% factory-tested before shipment (providing shipping video demonstration upon request).

HTW10

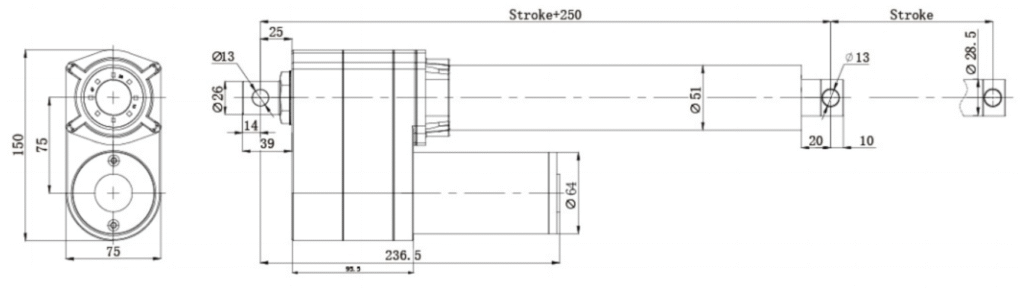

Drawing:

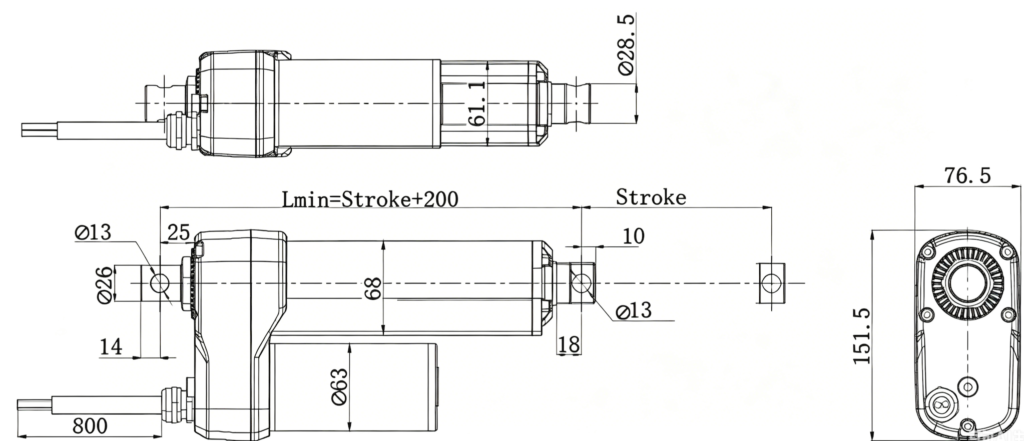

with Clutch:

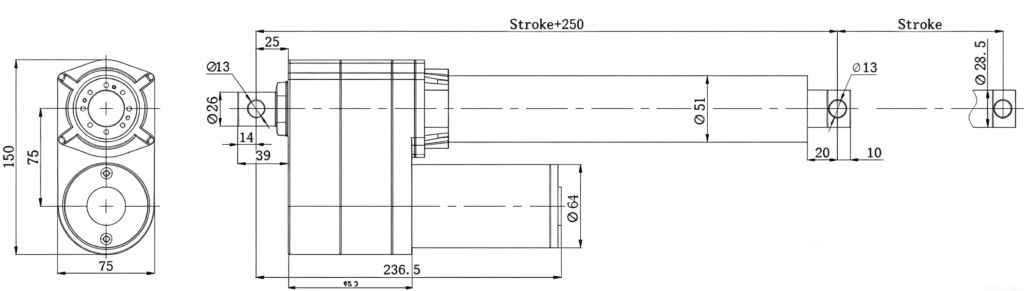

with Potentiometer：

HTW10 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 10,000 9,000 7,000 4,000 3,000 2,000 1,500 1,000
Free-load speed(mm/s) 5 8.5 12.5 17 22 40 100 160
Full-load speed(mm/s) 2.5 5 9 12 14 25 65 80
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 …
Retracted length(MM) 300 350 400 450 500 550 650 700 …
Retracted length(MM) W/potentiometer 350 400 450 500 550 600 700 750 …
Net Weight(KG) 5.5 5.8 6.1 6.4 7.7 8.1 8.5 9.9 …



View

setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
