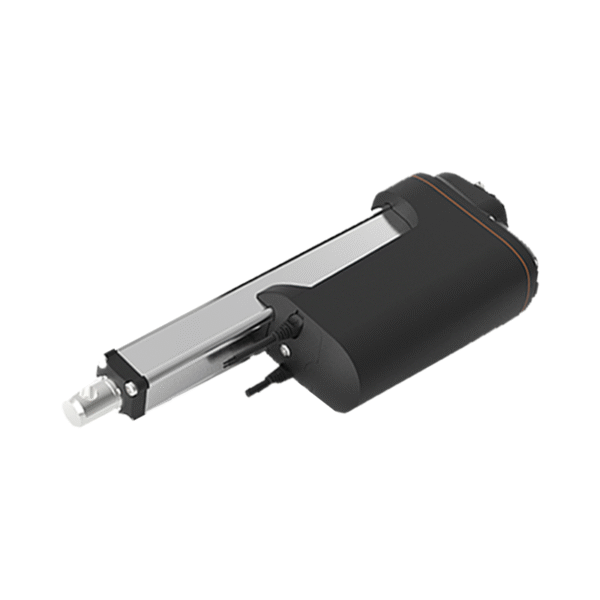

HTW73

  • Max. load: 12000 N
  • IP: IP66
  • Max. speed: 60 mm/s (@1000N)
  • Stroke option: 50-900 mm
HTW73

Features:

  • Motor: DC brush motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC

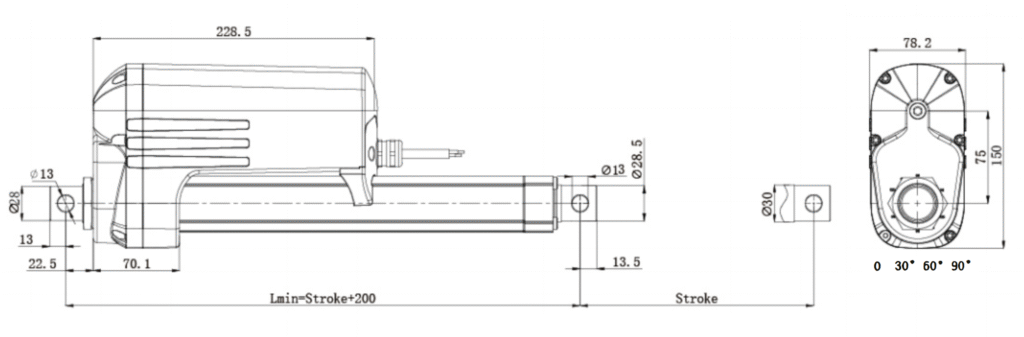

  • Built-in dimension: Stroke + 190mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Max load: 12000N
  • Protection class: IP66
  • Feedback optional: Potentiometer, Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level: 55-60dB
  • Approvals: CE

HTW73

CodeGear RationScrew Pitch(mm)No-Load Speed (mm/s)Load Speed (mm/s)Max Load (N)Max Self-Locking (N)No-Load Current AFull-Load Current A
12V24V48V12V24V48V
A40:146.54.512000150004.02.41.22010.55.5
B30:18.5611000120004.02.41.22010.55.5
C20:1139750090004.02.41.22010.55.5
D40:1813710000120004.02.41.22010.55.5
E30:1179.5700080004.02.41.22010.55.5
F20:12514500060004.02.41.22010.55.5
G40:1122011650080004.02.41.22010.55.5
H30:12513450055004.02.41.22010.55.5
I20:13824320040004.02.41.22010.55.5
J40:1203015400050004.02.41.22010.55.5
K30:14020300040004.02.41.22010.55.5
L20:16030200030004.02.41.22010.55.5



View

  • PDF
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
