HTW76

  • Max. load: 16,000 N
  • IP: IP66
  • Max. speed: 160 mm/s (@700N)
  • Stroke option: 50-900 mm
HTW76

Features:

  • Motor options: DC motor, brushless DC motor
  • Voltage: 12V, 24V, 36V, 48V DC
  • Minimum installation size: Stroke + 250mm(+/-3)
  • Stroke length: Max 900mm(+/-3)
  • Maximum thrust (pull force): 16,000N
  • Protection level: IP66
  • Screw selection: ball screw, trapezoidal screw
  • Signal options: Potentiometer, Hall sensor, endpoint signal
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • color: black
  • Switch type: Built-in limit switch,
  • Noise: 60~68 DB
  • Approvals: CE, ROHS
  • Slowest speed under load: 5.0mm/s (load 16,000N)
  • Maximum speed under load: 83 mm/s (load 1,000N)
  • Dynamic lateral moment: 1,000Nm
  • Static lateral moment: 800Nm
  • Control options: Synchronous control, independent control integrated control, CAN bus control

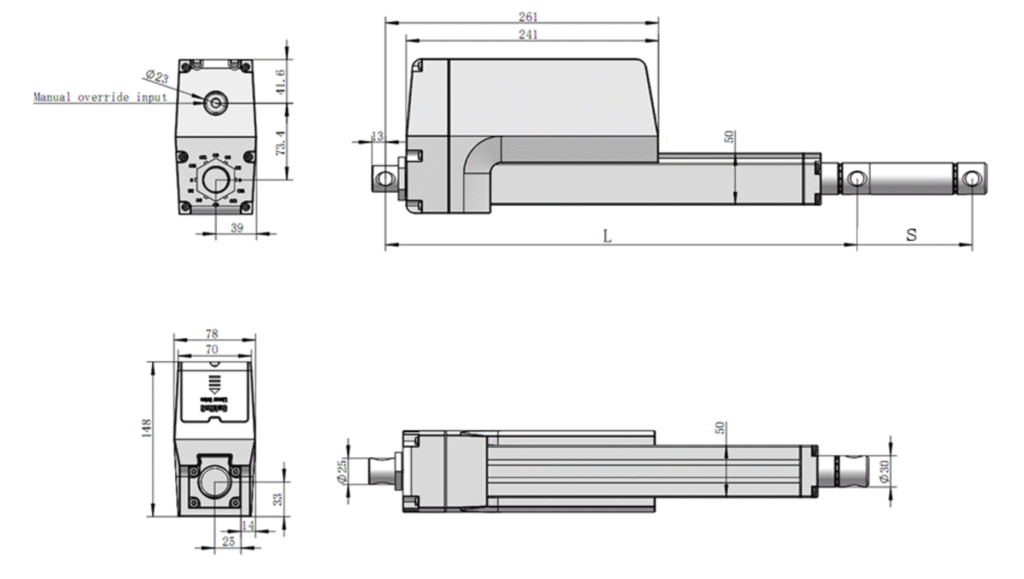

HTW76

HTW76 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)10,3007,6007,1004,5003,5002,200
Free-load speed(mm/s)5710151930
Full-load speed(mm/s)468121524
HTW77 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)16,90010,1007,9005,0504,5003,350
Free-load speed(mm/s)61114222533
Full-load speed(mm/s)4911182027
HTW78 Load V.S. SpeedLoad ±10％（N）Speed ±2（mm/S）
Max load(N)16,95013,15010,1509,0006,7504,5003,0002,2501,100750
Free-load speed(mm/s)710151722335067133200
Full-load speed(mm/s)68121318274053107160
Stroke(MM)50100150200250300350400500600700
Retracted length(MM)3003504004505005506006507509001000
Net Weight(KG)7.57.57.57.57.57.57.57.57.57.57.5

View

  • PDF
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
