HTW90-YB

  • Max. load: 20,000 N
  • IP: IP66
  • Max. speed: 2.0 mm/s (@16,000N)
  • Stroke option: 50-900 mm
HTW90-YB

Features:

  • Motor options: DC motor
  • Voltage: 12V, 24V, 36V, 48V DC

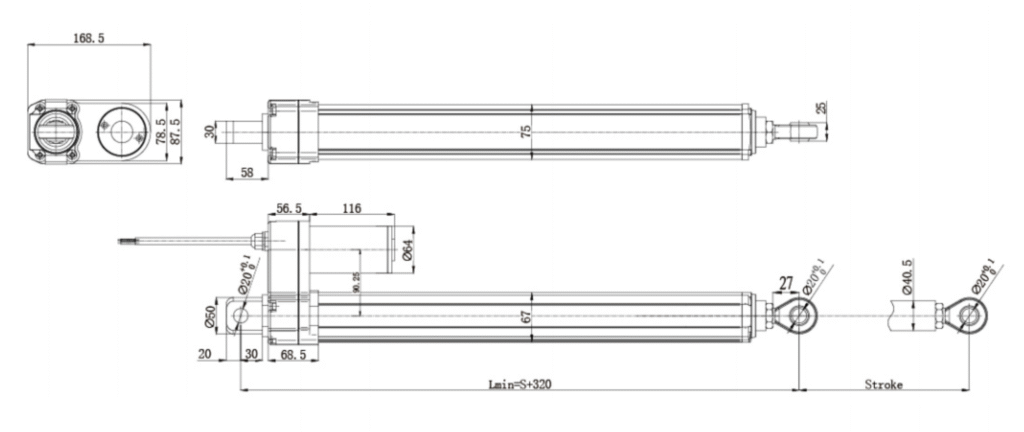

  • Minimum installation size: Stroke + 320mm(+/-3)
  • Stroke length: Customize
  • Maximum thrust (pull force): 20,000N
  • Protection level: IP66
  • Signal options: Hall sensor
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -20°C~+60°C
  • color: black
  • Switch type: Built-in limit switch,
  • Noise: 60~68 DB
  • Approvals: CE, ROHS
  • Slowest speed under load: 1.5mm/s (load 20,000N)
  • Maximum speed under load: 2 mm/s (load 16,000N)
  • Dynamic lateral moment: 1,000Nm
  • Static lateral moment: 800Nm

HTW90-YB

codeScrew Pitch
（mm）		No-load speed
（mm/s）		Load speed
（mm/s）		Maximum load
（N）		Maximum self-locking force
（N）		No-load current
（A）		Load current
（A）
12V24V48V12V24V48V
A32.51.520000210001.81.10.62010.55.5
B43.5216000170001.81.10.62010.55.5

View

  • PDF
setTimeout(() => { let backupModels = document.querySelectorAll(‘.bp3d_backup_view’); if (backupModels.length > 0) { backupModels.forEach(element => { if (element) { element.style.display = ‘block’; setTimeout(() => { let adminMessages = document.querySelectorAll(‘.bp3d_admin_message’); if (adminMessages.length > 0) { adminMessages.forEach(adminMessage => { if (adminMessage) { adminMessage.style.display = ‘block’; } }); } }, 5000); } }); } }, 5000);

Time-Proven Application

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.

See Time-Proven Application
