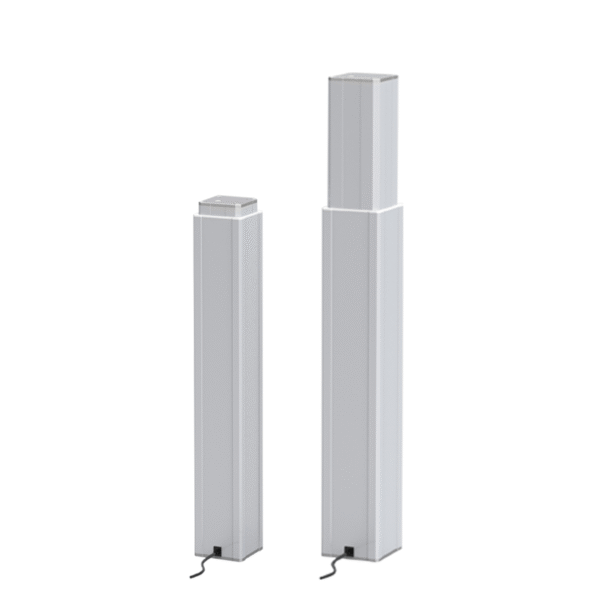

HTX2 Lifting Column

  • Max. load: 2150N
  • IP grade: IPX4
  • Motor: DC brush motor
HTX2 Lifting Column

Features:

  • Motor: 12V DC, 24V DC, 36V DC, 48V DC
  • Size: two sections, 98*98mm, square
  • Built-in dimension: Stroke + 200mm(+/-3)
  • Stroke length: Max 600mm(+/-3)
  • Max load: 2150N
  • Protection class:IP54
  • Operating temperature: +5°C~+45°C
  • Ambient temperature: -45°C~+75°C
  • Colour: anodised aluminium, or customized
  • Built-in electrical limited switch, not adjustable
  • Noise level:48-52dB
  • Approvals:CE
  • Matching with all GEMING control boxes and controls.

Why Global Engineers Choose GEMING

With over 16 years of dedicated experience in electric linear actuators and lifting columns, GEMING (Zhejiang Ge Ming Driven Technology Co., Ltd.) supports OEM engineers with custom linear motion solutions for industrial automation, medical equipment, ergonomic workspaces, outdoor systems, and robotic applications. Our engineering team reviews load, stroke, speed, duty cycle, installation space, control logic, and environmental requirements before recommending a product configuration.

For safety-critical or heavy-duty projects, GEMING can provide application review, CAD/STEP support, technical documentation, and custom actuator or lifting column development based on verified project requirements.

HTX2 Lifting Column Engineering Positioning

HTX2 is built for harsher environments and outdoor equipment where dust, moisture, and structural durability are important. It is suitable for agricultural equipment, outdoor automation, solar-related motion systems, and weather-exposed lifting mechanisms.

Use this model when your project needs a configurable linear motion component rather than an off-the-shelf catalog-only part. For accurate selection, prepare the required load, stroke, voltage, speed, duty cycle, mounting direction, and control interface.

HTX2 Lifting Column Technical Resources

HTX2 Lifting Column FAQ

Can the HTX2 be used in outdoor agricultural or solar applications?

Yes, HTX2 can be configured for outdoor and harsh-environment projects. Sealing, corrosion protection, voltage, duty cycle, and mounting orientation should be confirmed before final selection.

What information should I provide before requesting a quote?

Please provide load, stroke, speed, voltage, duty cycle, installation space, mounting direction, environmental conditions, and any control or feedback requirements.

HTX2 Lifting Column

HTX2 Load V.S. Speed Load ±10％（N） Speed ±2（mm/S）
Max load(N) 2,150 1,050 700 600 400
Free-load speed(mm/s) 6.5 13 19.5 26 39
Full-load speed(mm/s) 5 10 15.5 21 31
Stroke V.S. Retracted length stroke ±2（mm) retracted length ±2（mm）
Stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 250 300 350 400 480 530 580 630 680
Net Weight(KG) 3.7 4.3 4.9 5.5 6.1 6.7 7.3 7.9 8.5
