Linear Actuators

HTK55

Features:

Motor: Permanent magnet DC motor
Voltage: 12V DC,24V DC，36V DC，48V DC
Stroke length: 50~900MM

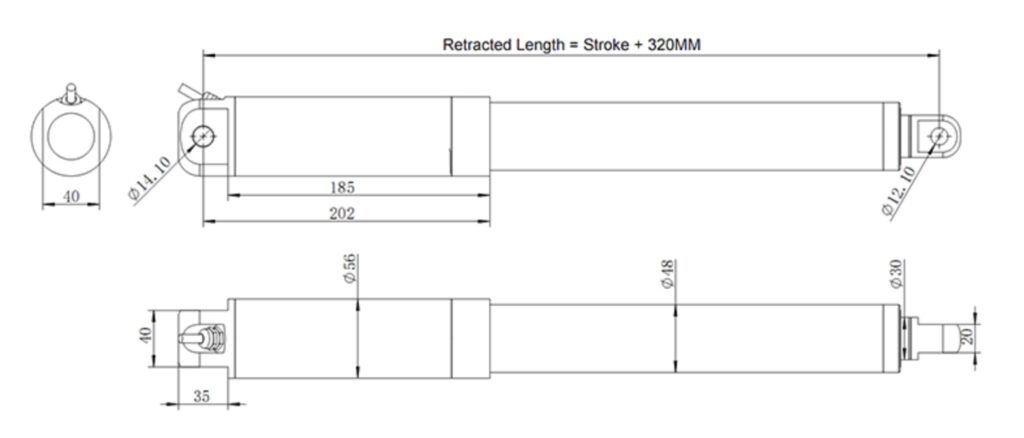

Minimum size: Stroke + 320 mm (limited to 300 mm stroke or less)
Minimum size: Stroke + 350 mm (over 300 mm stroke)
Max load: 4000N
Protection class: IP66
Operating temperature: +5°C~+45°C
Ambient temperature: -45°C~+75°C
Colour: black
Duty cycle: 25%
High-strength stainless steel casing protects the motor and gears.
Other options: Hall effect sensor, passive signal
Limit switch: (Built-in: Not adjustable)

Model	Motor speed (rpm/min)	Motor power (W)	No-load speed (mm/s)	Load (N)	Load speed (mm/s)	Load current （A）
HTK55	12000	90	19.2	1545	15.4	6.1
	8000	90	7.1	4173	5.7	6.1
	8000	60	10.7	1855	8.5	4.1
	8000	60	21.3	927	17.1	4.1
	8000	60	31.4	631	25.1	4.1
	8000	60	62.7	315	50.2	4.1
	8000	60	94.1	210	75.3	4.1
	8000	60	106.7	185	85.3	4.1

Installed in a woodworking saw table in 2017,
this linear actuator remained in continuous service for years without replacement.

In 2025, the same customer reordered the identical model for a new project.
