Optimizing Vision, Sensor Deployment, and Payload Dynamics in Autonomous Inspection and AGV/AMR Applications
Related product: HTL461 Telescopic Lifting Mast
Introduction
The rapid proliferation of Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and specialized quadrupeds has revolutionized industrial automation, warehouse logistics, and dangerous-environment inspection. However, as mobile platforms navigate dynamic floors or rugged terrains, their onboard sensors—LiDARs, optical zoom cameras, thermal imagers, and gas detectors—often hit a physical bottleneck: fixed-height limitations.

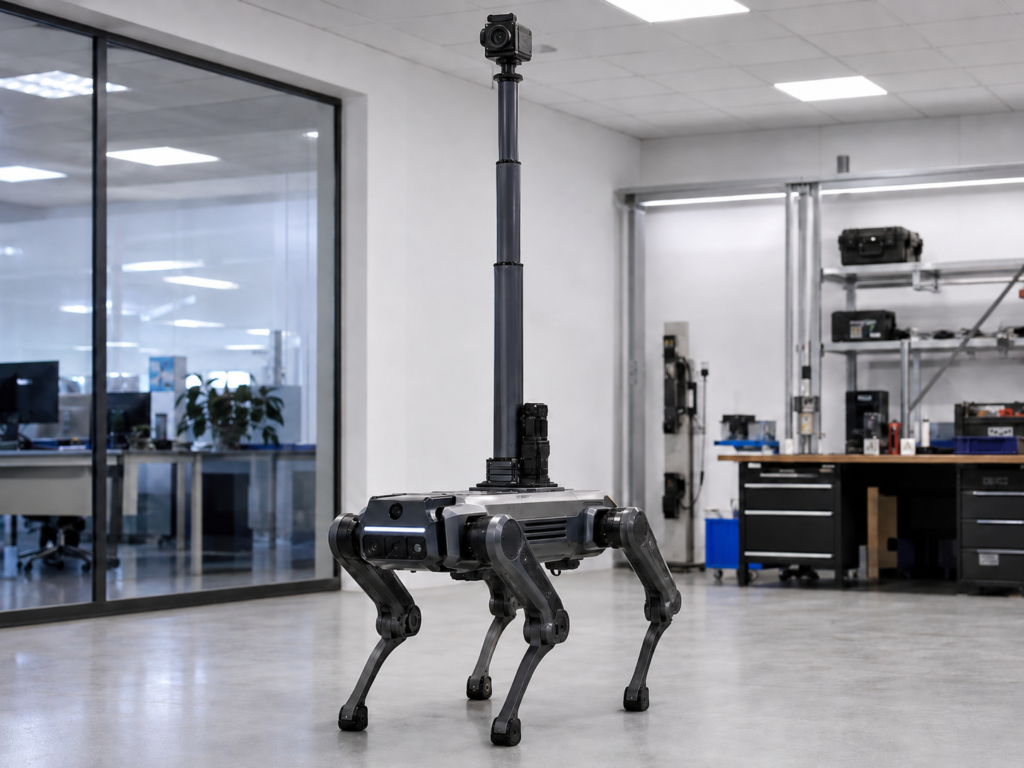

To break through this constraint, next-generation mobile robots are increasingly adopting compact electric telescopic masts and linear lifting columns. These specialized motion components allow a robot to dynamically adjust its sensory height, transitioning seamlessly from a compact, low-center-of-gravity driving profile to an elevated, high-visibility scanning configuration.
Why Mobile Robots Require Vertical Actuation
In robotic design, maintaining a low profile during transit ensures stability, high maneuverability, and the ability to pass beneath low-clearance structures. Yet, when a robot arrives at an inspection target—such as a high-voltage transformer dial, a multi-tier warehouse rack, or an overhead petrochemical pipeline—it requires elevation. Compact electric telescopic masts bridge this gap by delivering three critical advantages:
- Dynamic Field of View (FoV): Elevating a 3D LiDAR or PTZ camera eliminates ground-level blind spots, allows scanning over obstacles, and dramatically improves mapping efficiency in large spaces.
- Precision Industrial Metrology: Rigid telescopic profiles allow Cobots (Collaborative Robots) and measurement probes mounted on AMRs to accurately reach multi-level workpieces without losing structural stability.
- Operational Safety: Equipping a mobile unit with an elevated warning light or multi-stage signaling indicator ensures visibility and safety compliance in busy human-robot shared workspaces.
Design Tip: For mobile applications, a standard industrial actuator won’t suffice. Mobile robotics demand an optimal balance between a low retracted height (for compact nesting) and a high extended stroke, all while operating under highly restrictive DC battery power budgets.
Key Technical Considerations for Robot-Mounted Lifting Columns
Integrating an electric telescopic column onto a mobile platform presents unique engineering challenges compared to static factory automation. Actuator selection must prioritize the following parameters:
1. Stroke-to-Retracted Length Ratio & Multi-Stage Geometry
To maximize elevation while preserving a compact footprint, multi-stage telescopic designs (2-stage or 3-stage) are essential.
A 3-stage telescopic column allows for a significantly shorter retracted profile while delivering an extended stroke that can exceed double the nesting size.
This ensures the robot maintains excellent stability during rapid cornering or acceleration.
2. High Bending Moment Resistance & Rigidity
Mobile platforms vibrate, accelerate, and occasionally encounter uneven terrain.
When a telescopic mast is fully extended, any clearance or play between the telescoping profiles amplifies sensor shake, ruining LiDAR clouds or camera feeds. High-quality precision engineered slide guides and internal tolerances are critical to withstand dynamic bending moments ($M_x, M_y$) while keeping jitter to an absolute minimum.
3. Efficient DC Power Management & Feedback Integration
Because mobile robots run entirely on batteries (typically 24VDC or 48VDC), the telescopic actuator must operate with high electrical efficiency and minimal idle current draw. Furthermore, closed-loop control is mandatory.
Integration of internal Hall sensors or CAN-bus / Modbus communication protocols allows the robot’s main controller to monitor position feedback down to the millimeter, ensuring seamless synchronization with the robot’s SLAM algorithms.
GEMING Advanced Solutions for Mobile Robotics

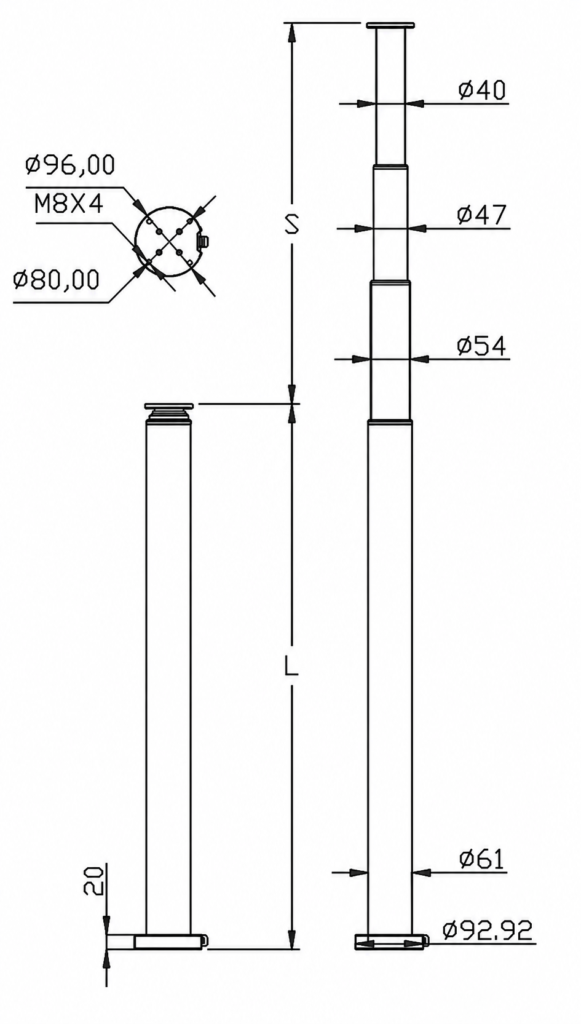

HTL461 Lifting Column Dimensions
At Zhejiang Ge Ming Driven Technology Co., Ltd. (GEMING/YABEI), we engineer specialized electric lifting columns designed specifically to empower mobile automation. Our product line combines structural stiffness, optimized power efficiency, and compact design parameters needed for cutting-edge robotic applications:
- High-Precision Profiles: Extruded aluminum alloy profiles treated for minimal friction and maximum structural rigidity, minimizing sensor sway during robot movement. Our TL461 Electric Lifting Column is specifically engineered to handle limited installation space mobile inspection tasks, such as robotic lifting systems, camera masts, inspection equipment, mobile platforms, and intelligent automation devices.
- Seamless Robotic Integration: Available with 24V/48V DC motors, equipped with integrated bus control interfaces for precise positioning and safety limits. For highly compact chassis designs, the HTG3 Robotic Arm Lifting Column offers the ideal balance of payload and integrated space.
- Proven in Demanding Environments: From multi-stage columns supporting precision equipment in stable, high-tech environments to rugged inspection assemblies, our engineering delivers reliability. For specialized multi-stage high-reach elevation, explore the HTD5 5-Stage Lifting Column or our dedicated Embodied Robot Pillar for next-generation automated systems.
- High-Precision Profiles: Extruded aluminum alloy profiles treated for minimal friction and maximum structural rigidity, minimizing sensor sway during robot movement.
- Seamless Robotic Integration: Available with 24V/48V DC motors, equipped with integrated bus control interfaces for precise positioning and safety limits.
- Proven in Demanding Environments: From multi-stage columns supporting precision equipment in stable, high-tech environments to rugged inspection assemblies, our engineering delivers reliability.
Conclusion
As autonomous vehicles move from flat warehouse environments into more complex, multi-dimensional, and unstructured industrial terrains, vertical adaptation is no longer optional—it is a core capability. Implementing a compact, rigid, and intelligent electric telescopic mast ensures that your mobile robot is never blindsided, always aligned, and perfectly positioned to interact with its environment.
Looking to optimize the vertical reach of your next AMR, AGV, or robotic platform? Contact the engineering team at GEMING to discuss our custom linear actuator and multi-stage telescopic column capabilities.
Frequently Asked Questions (FAQ)
A: The primary advantage is the stroke-to-retracted length ratio. Mobile robots (such as AMRs or quadrupeds) require a low center of gravity and a compact nesting height to remain stable during transit and pass through low-clearance spaces. A multi-stage telescopic column (like a 3-stage or telescopic design) achieves a very low retracted profile while delivering an extended stroke that can double or triple its nested height. Standard linear actuators cannot achieve this without requiring bulky external guiding structures.
A: Sensor jitter is caused by structural deflection and dynamic bending moments ($M_x, M_y$). To eliminate this, our columns (such as the TL461) utilize precision-extruded aluminum profiles engineered with tight internal tolerances and heavy-duty, low-friction slide guides. This high structural rigidity ensures that even when a 3D LiDAR or optical zoom camera is fully elevated while the robot accelerates or navigates uneven factory floors, vibration is minimized to ensure clean data acquisition.
A: Yes. Standard factory automation columns often run on AC power, but our robotic-grade lifting columns are designed specifically for mobile platforms, operating on 24V DC or 48V DC. They feature highly efficient internal motors and gearboxes to maximize battery life, consuming minimal idle current when the mast is holding its position.
A: Precise closed-loop feedback is essential. Our lifting columns come equipped with dual integrated Hall sensors providing millimeter-level pulse feedback to the robot’s main controller. For advanced AGV/AMR architectures, we support digital communication interfaces (such as CAN-bus or Modbus), allowing the robot to dynamically coordinate its height with its mapping and perception algorithms in real time.
